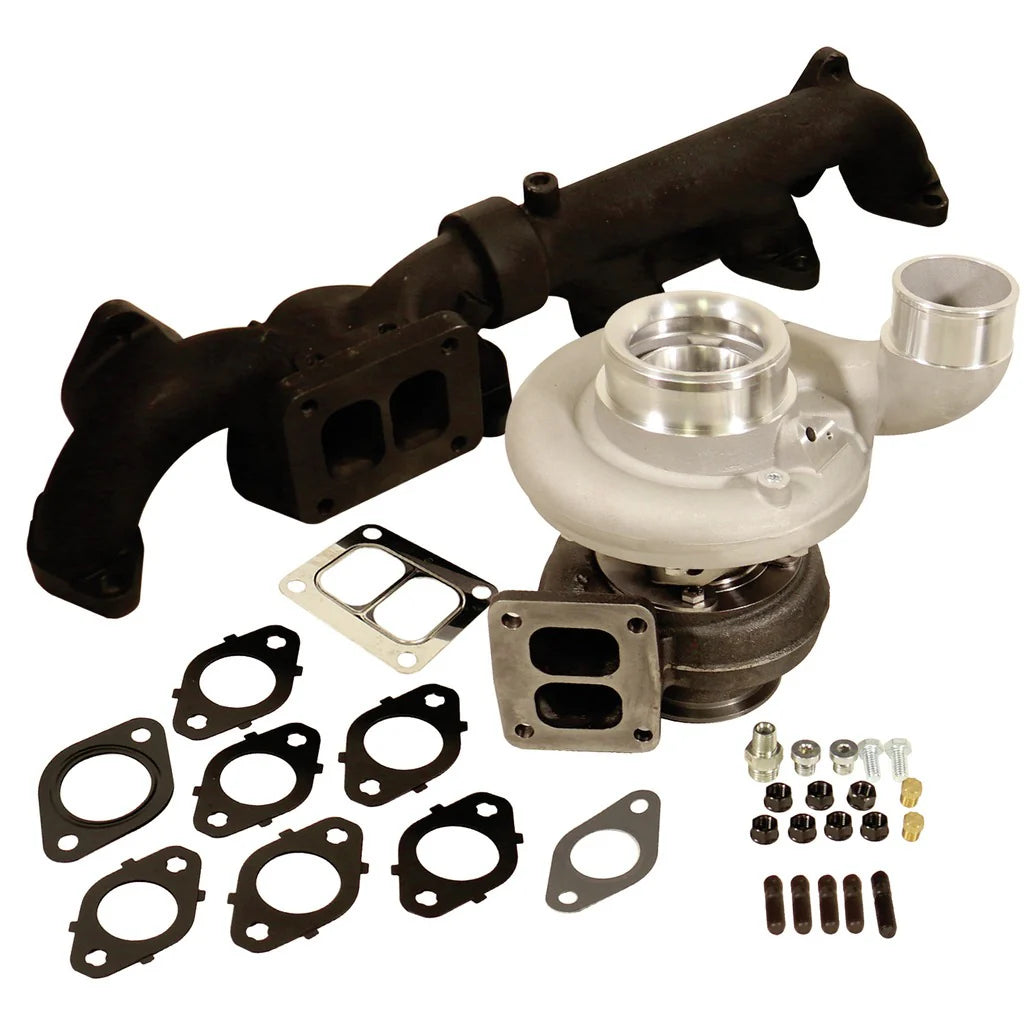

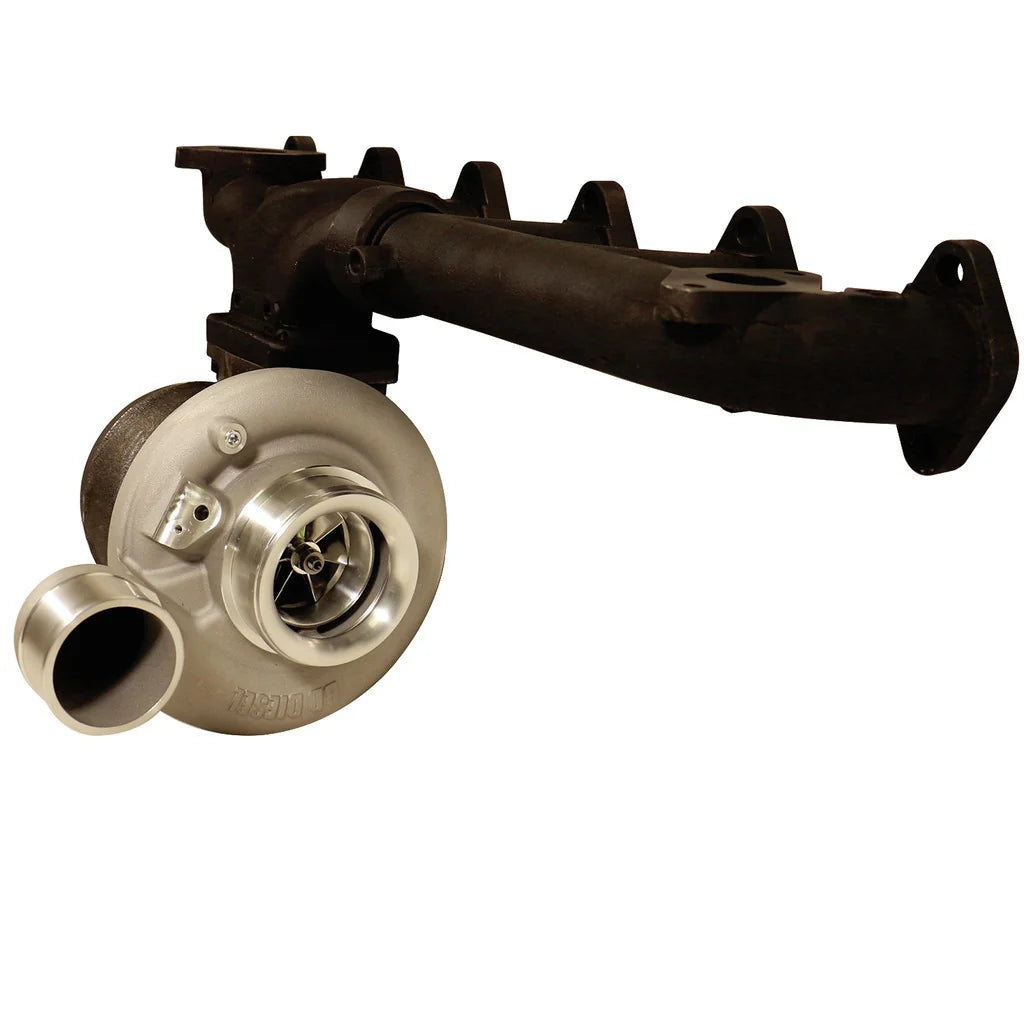

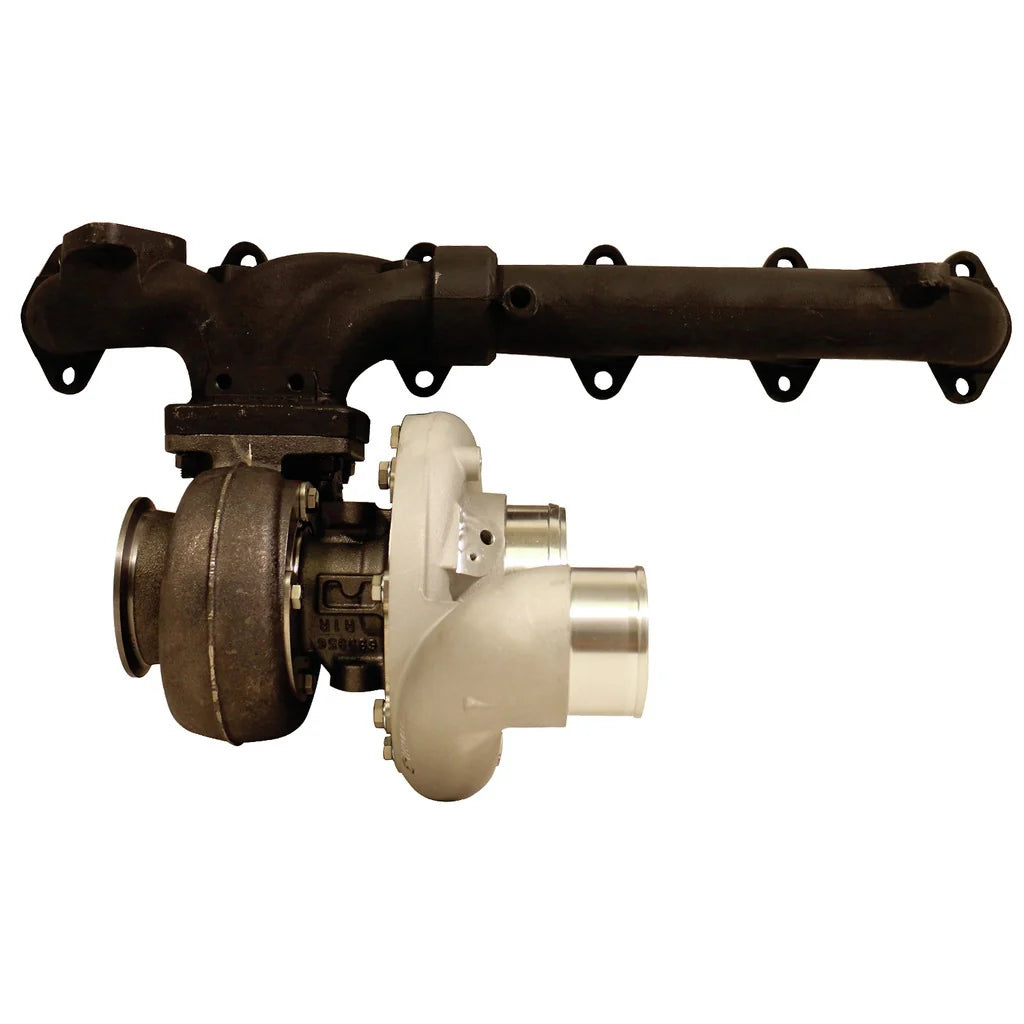

BD Diesel Iron Horn Turbo Manifold Package S369SXE 80 0.91AR 1045298 | 2007-2018 6.7L Cummins

Maximize the performance of your truck with the BD 69mm SX-E Single Turbo Kit. This complete bolt-on system replaces the factory Holset VGT turbocharger with a high-flow BorgWarner SX-E turbo designed to deliver exceptional airflow, lower exhaust gas temperatures, reduced drive pressure, and outstanding reliability for high-performance street and competition applications.

Featuring a massive 69mm Forged Milled Wheel (FMW) compressor, an 80mm turbine wheel, and a high-flow T4 turbine housing, this turbo supports approximately 700 horsepower, depending on vehicle configuration. The lightweight forged compressor wheel and durable 360-degree thrust bearing provide increased efficiency and strength while maintaining excellent turbo response.

The included BD Performance Plus T4 exhaust manifold retains factory EGR ports for compatibility with emissions equipment where applicable. Designed as a true bolt-on upgrade, the system installs without additional piping for a clean, factory-like fit.

Features:

• Complete BorgWarner SX-E single turbo conversion kit
• Replaces the factory VGT turbocharger
• Supports approximately 700 horsepower (vehicle dependent)
• 98 lb/min airflow capacity
• High-flow T4 turbine housing
• BD Performance Plus T4 exhaust manifold with integrated EGR ports
• 360-degree thrust bearing for enhanced durability
• Forged Milled Wheel (FMW) compressor wheel
• Reduces exhaust gas temperatures and turbo drive pressure
• Improves airflow, throttle response, and engine reliability
• No additional piping required
• Direct bolt-on installation
• Includes exhaust manifold and installation gaskets

Turbo Specifications:

• Compressor Wheel: 69mm (2.72")
• Turbine Wheel: 80mm (3.15")
• Turbine Housing A/R: 0.91
• Airflow: 98 lb/min
• Estimated Power Capability: 700 HP (vehicle dependent)
