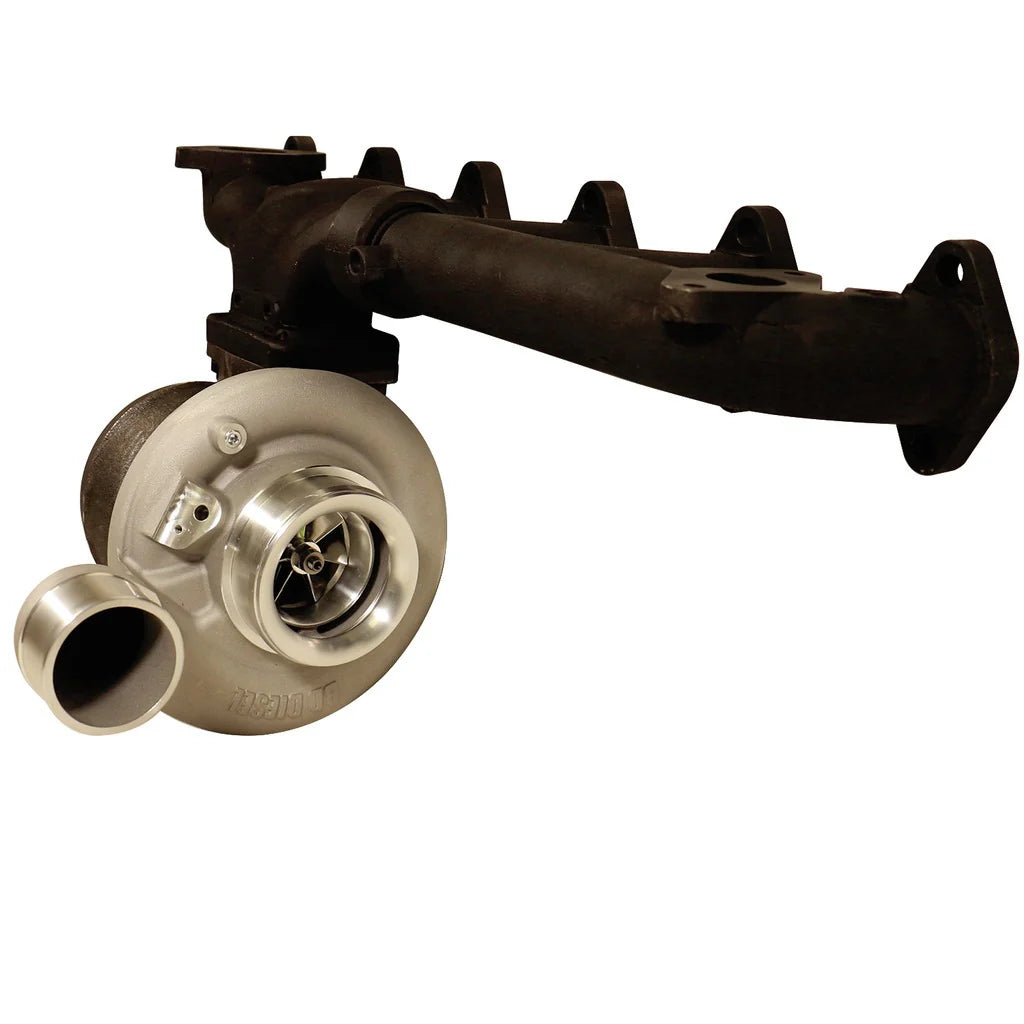

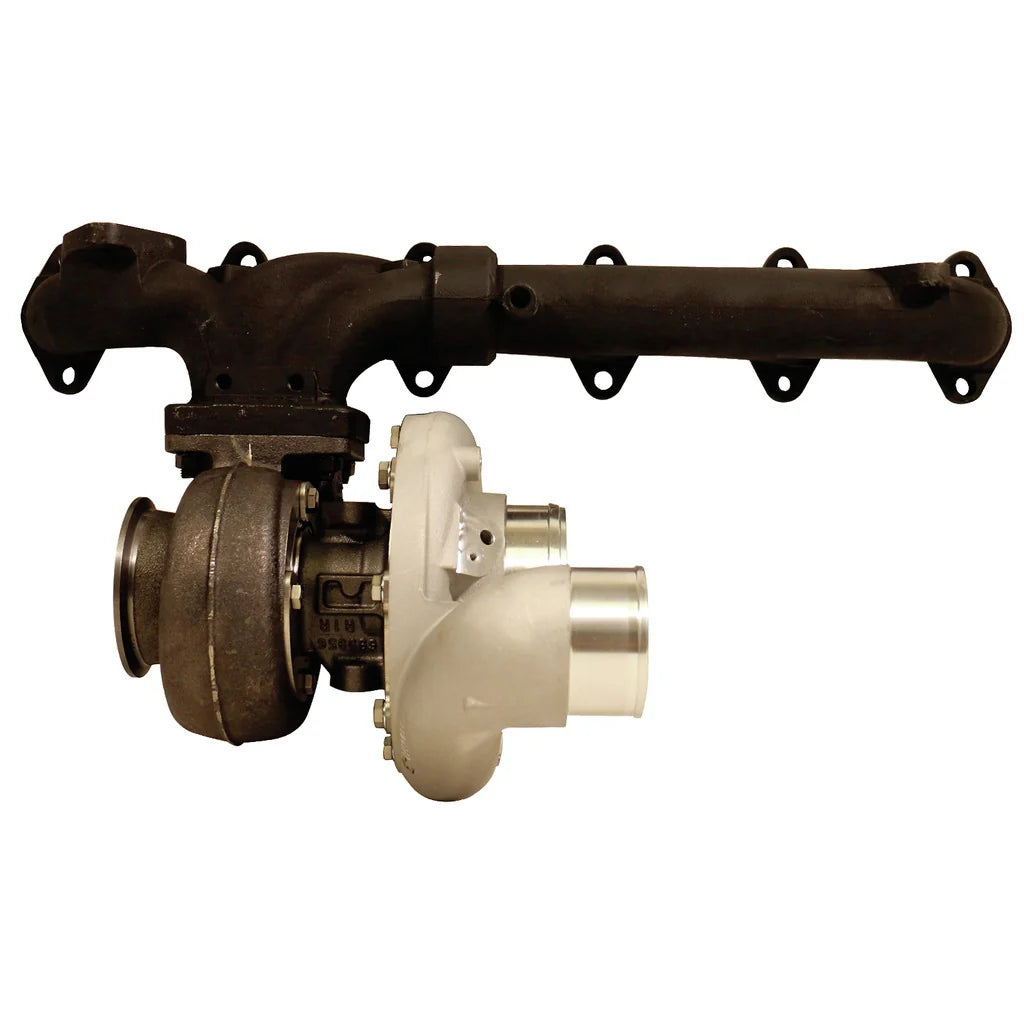

BD Diesel Iron Horn Turbo Manifold Package S364SXE 80 0.91AR 1045294 | 2007-2018 6.7L Cummins

Upgrade your factory VGT turbo with the BD 64.5mm SX-E Single Turbo Kit for increased horsepower, improved reliability, and lower exhaust gas temperatures. This complete bolt-on system replaces the factory Holset turbo with a high-flow BorgWarner SX-E turbocharger, providing greater airflow, reduced drive pressure, and excellent street and towing performance.

Featuring a 64.5mm Forged Milled Wheel (FMW) compressor paired with an 80mm turbine wheel and a high-flow T4 turbine housing, this turbo is capable of supporting approximately 600 horsepower while maintaining responsive spool-up. The included BD Performance Plus T4 exhaust manifold retains factory EGR ports, allowing emissions equipment to remain in place where applicable.

Designed with a durable 360-degree thrust bearing and lightweight forged compressor wheel, the SX-E turbo delivers increased efficiency, improved durability, and reliable performance for daily driving, towing, and high-performance applications. Installation is simple with a true bolt-on design that requires no additional piping.

Features:

• Complete BorgWarner SX-E single turbo conversion kit
• Replaces the factory VGT turbocharger
• Supports approximately 600 horsepower (vehicle dependent)
• 82 lb/min airflow capacity
• High-flow T4 turbine housing
• BD Performance Plus T4 exhaust manifold with integrated EGR ports
• 360-degree thrust bearing for enhanced durability
• Forged Milled Wheel (FMW) compressor wheel
• Reduces exhaust gas temperatures and turbo drive pressure
• Improves throttle response and engine reliability
• No additional piping required
• Direct bolt-on installation

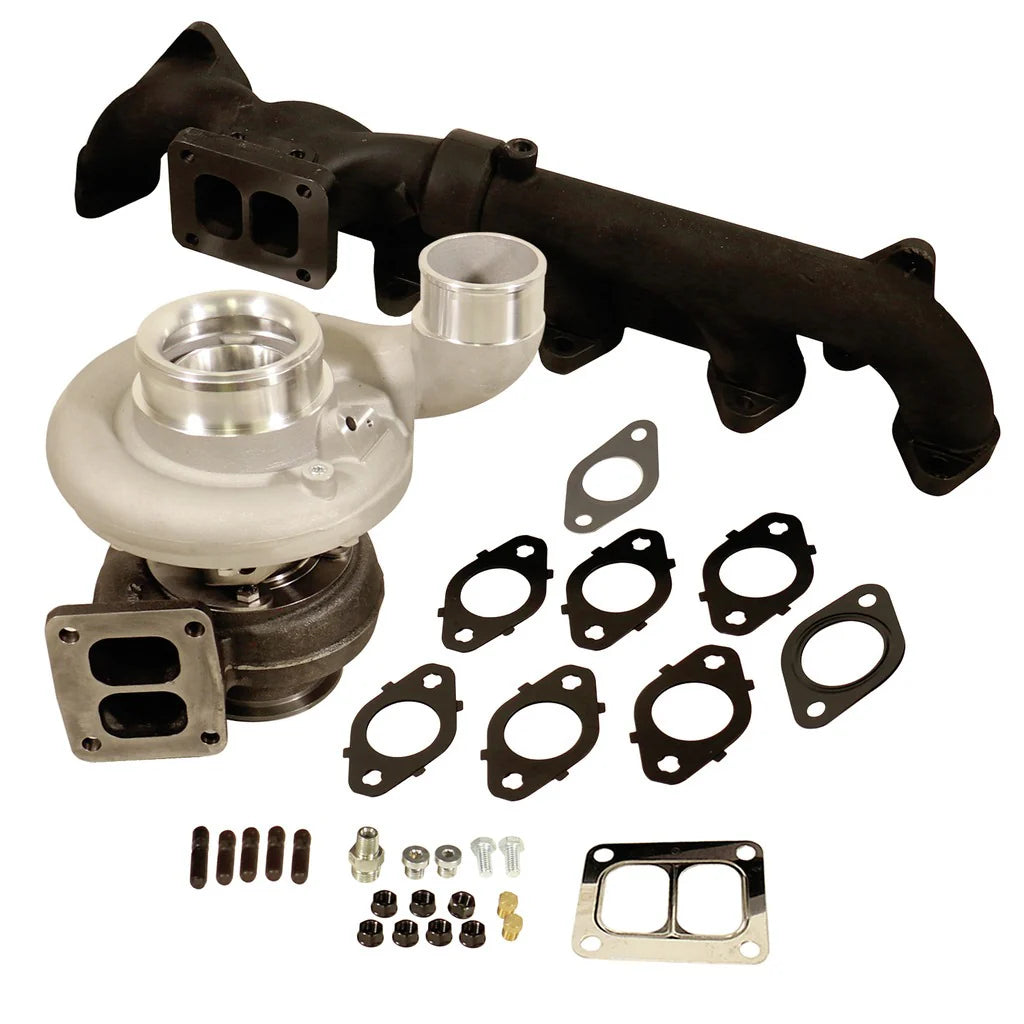

• Includes exhaust manifold and installation gaskets

Turbo Specifications:

• Compressor Wheel: 64.5mm (2.54")
• Turbine Wheel: 80mm (3.15")
• Turbine Housing A/R: 0.91
• Airflow: 82 lb/min
• Estimated Power Capability: 600 HP (vehicle dependent)
