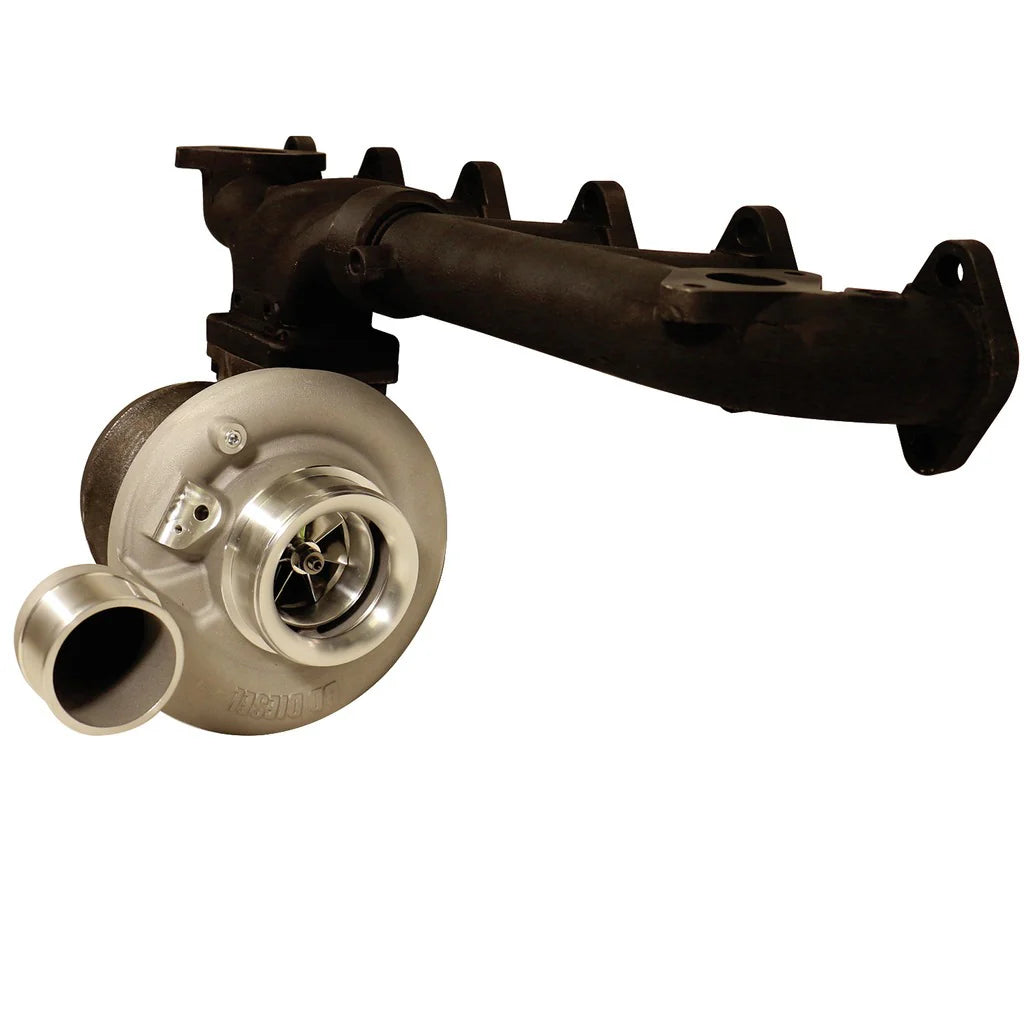

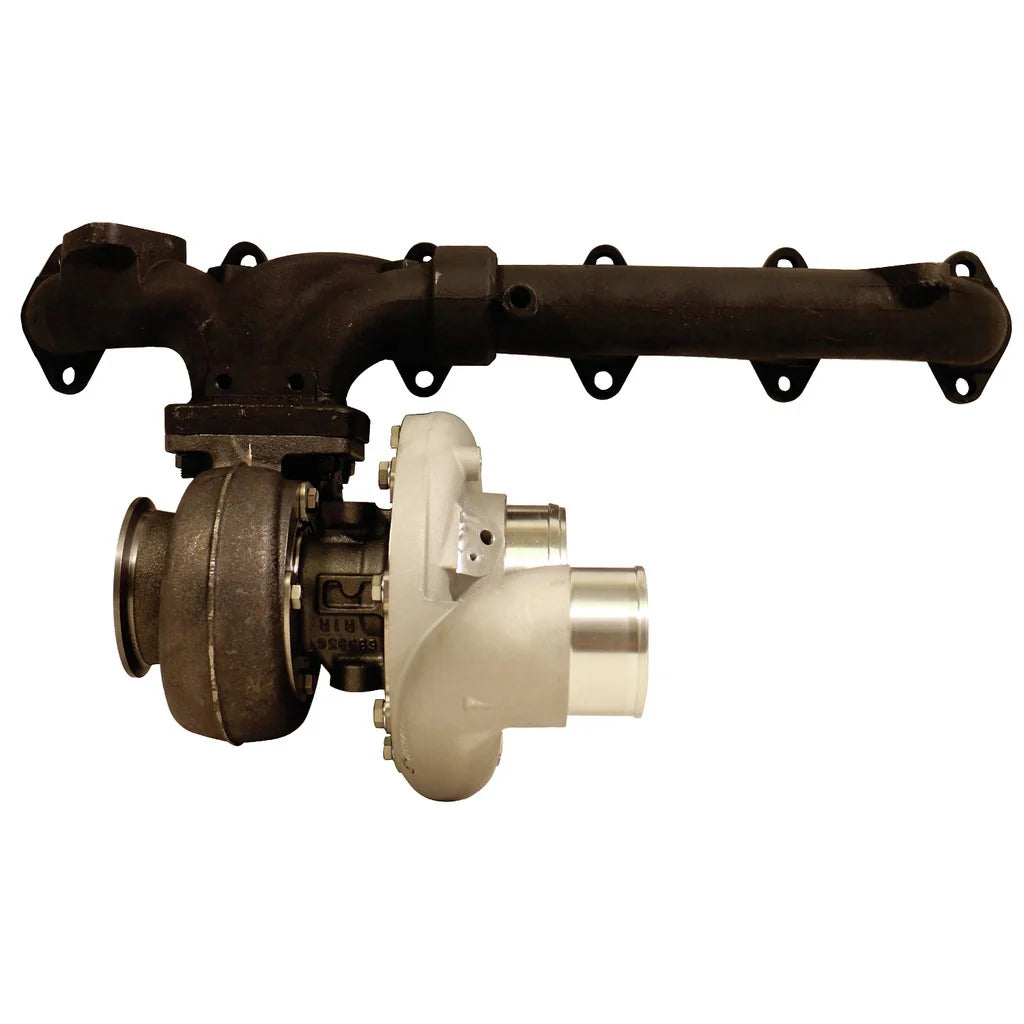

BD Diesel Iron Horn Turbo Manifold Package S363SXE 80 0.91AR 1045293 | 2007-2018 6.7L Cummins

Replace your factory VGT turbo with the BD 63mm SX-E Single Turbo Kit and enjoy improved reliability, lower exhaust gas temperatures, and increased horsepower. This complete bolt-on system replaces the factory Holset turbo with a BorgWarner SX-E turbocharger designed to deliver exceptional airflow, quicker response, and long-term durability for street, towing, and performance applications.

Featuring a 63mm Forged Milled Wheel (FMW) compressor and a larger 80mm turbine wheel housed in a high-flow T4 turbine housing, this setup offers excellent top-end airflow while maintaining strong drivability. The included BD Performance Plus T4 exhaust manifold retains factory EGR functionality, making it compatible with emissions-equipped applications where applicable.

Built with a heavy-duty 360-degree thrust bearing and advanced compressor wheel design, the SX-E turbo is engineered to withstand higher shaft speeds while reducing drive pressure and helping protect the engine under demanding conditions. Installation is straightforward with no additional piping required.

Features:

• Complete BorgWarner SX-E single turbo conversion kit
• Replaces the factory VGT turbocharger
• Supports approximately 550 horsepower (vehicle dependent)
• 79 lb/min airflow capacity
• High-flow T4 turbine housing
• BD Performance Plus T4 exhaust manifold with integrated EGR ports
• 360-degree thrust bearing for enhanced durability
• Forged Milled Wheel (FMW) compressor wheel
• Reduces exhaust gas temperatures and turbo drive pressure
• Improves throttle response and engine reliability
• No additional piping required
• Direct bolt-on installation

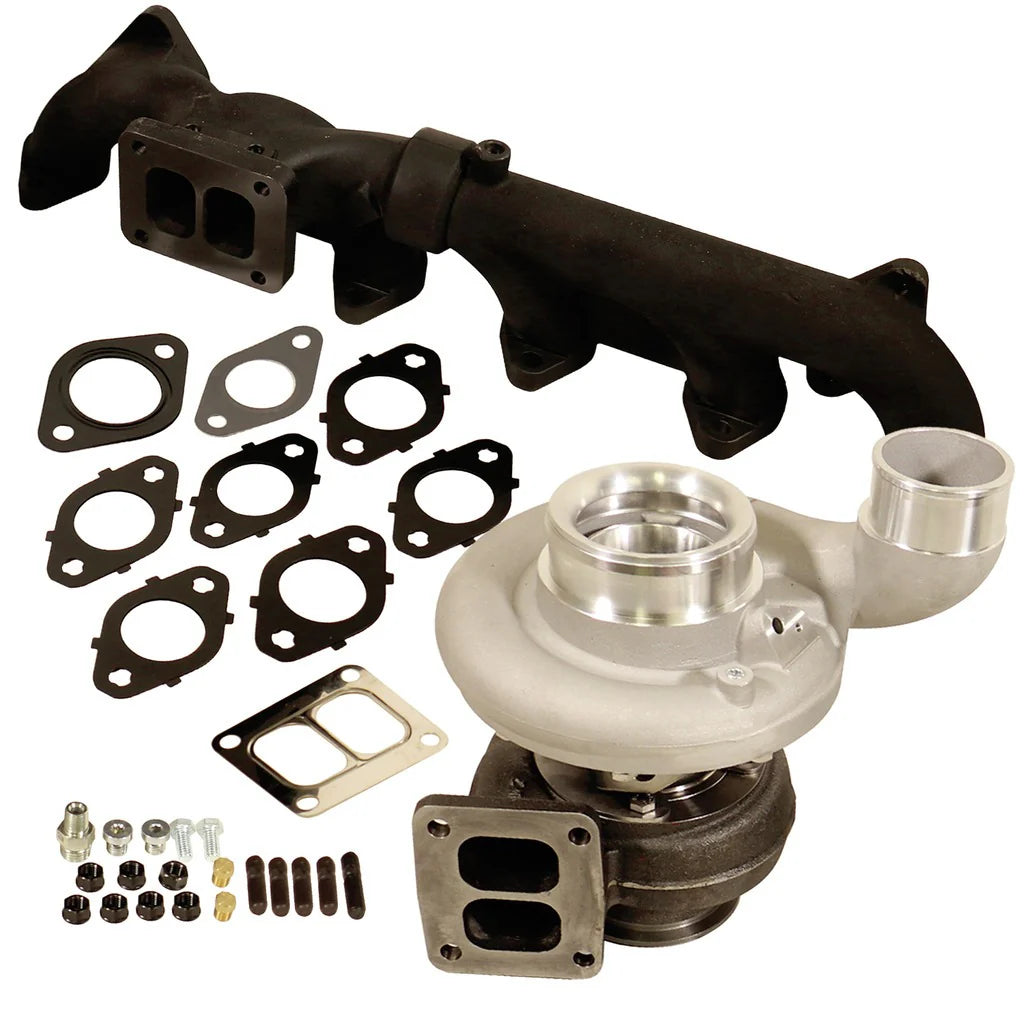

• Includes exhaust manifold and installation gaskets

Turbo Specifications:

• Compressor Wheel: 63mm (2.48")
• Turbine Wheel: 80mm (3.15")
• Turbine Housing A/R: 0.91
• Airflow: 79 lb/min
• Estimated Power Capability: 550 HP (vehicle dependent)
