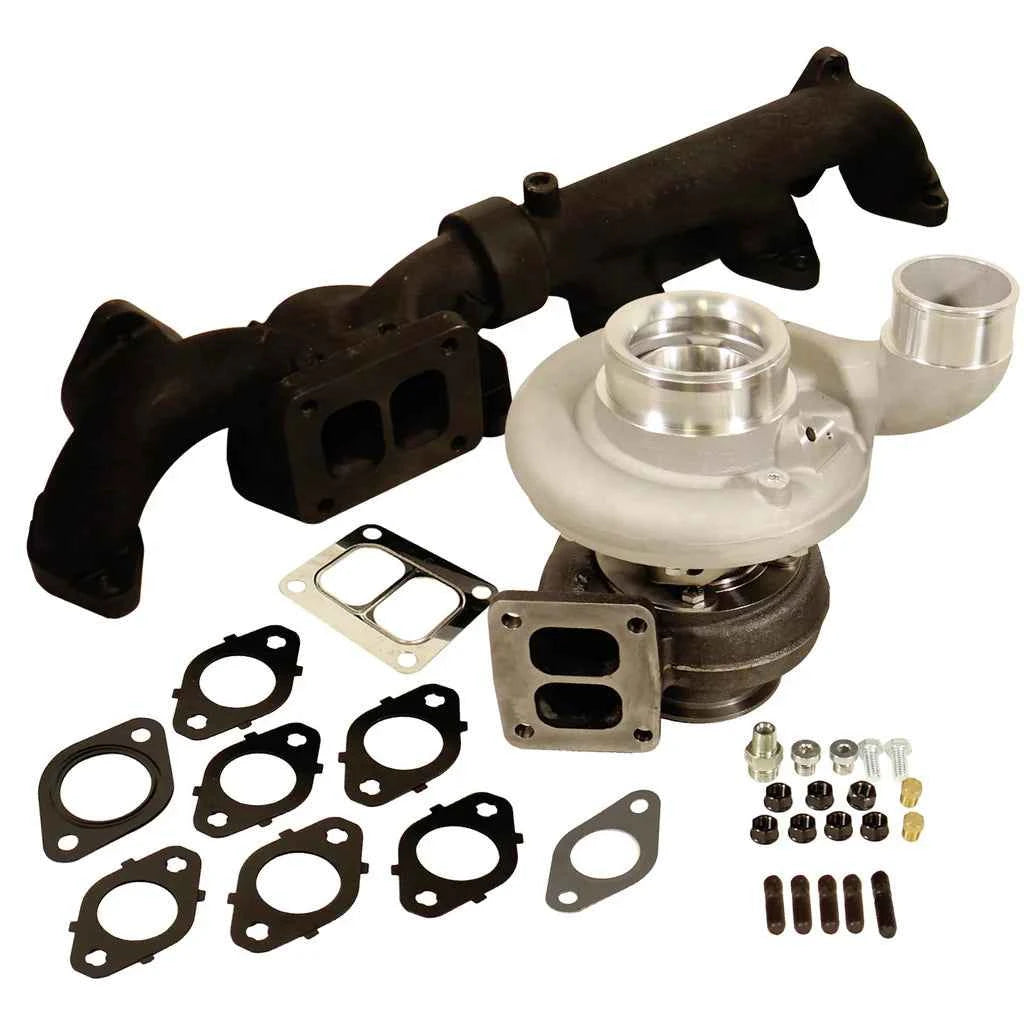

BD Diesel Iron Horn Turbo Manifold Package S363SXE 76 0.91AR 1045292 | 2007-2018 6.7L Cummins

BD 63mm SX-E Single Turbo Kit

Upgrade your factory VGT turbo with the BD 63mm SX-E Single Turbo Kit and experience the perfect combination of reliability and performance. Designed as a complete bolt-on replacement, this kit replaces the factory Holset turbo with a high-flow BorgWarner SX-E turbocharger that delivers improved airflow, faster response, lower exhaust gas temperatures, and reduced drive pressure.

Built around a 63mm Forged Milled Wheel (FMW) compressor and a high-flow T4 turbine housing, the SX-E turbo provides excellent street manners while supporting approximately 550 horsepower, depending on your truck's configuration. The included BD Performance Plus T4 exhaust manifold features integrated EGR ports, allowing you to retain factory emissions equipment where applicable.

With a durable 360-degree thrust bearing, lightweight forged compressor wheel, and true bolt-on installation requiring no additional piping, this turbo kit is engineered for drivers seeking dependable towing performance, improved drivability, and increased horsepower.

Features:

• Complete BorgWarner SX-E single turbo conversion kit
• Replaces the factory VGT turbocharger
• Supports approximately 550 horsepower (vehicle dependent)
• 79 lb/min airflow capacity
• High-flow T4 turbine housing
• BD Performance Plus T4 exhaust manifold with integrated EGR ports
• 360-degree thrust bearing for improved durability
• Forged Milled Wheel (FMW) compressor wheel
• Reduces exhaust gas temperatures and turbo drive pressure
• Improves reliability, throttle response, and engine efficiency
• No additional piping required
• Direct bolt-on installation
• Includes exhaust manifold and installation gaskets

Turbo Specifications:

• Compressor Wheel: 63mm (2.48")
• Turbine Wheel: 76mm (2.99")
• Turbine Housing A/R: 0.91
• Airflow: 79 lb/min
• Estimated Power Capability: 550 HP (vehicle dependent)
