BANKS POWER MONSTER-RAM INTAKE & HEATER GRID UPGRADE NATURAL & RED 42806 | 2007.5-2012 6.7L CUMMINS CAB & CHASSIS

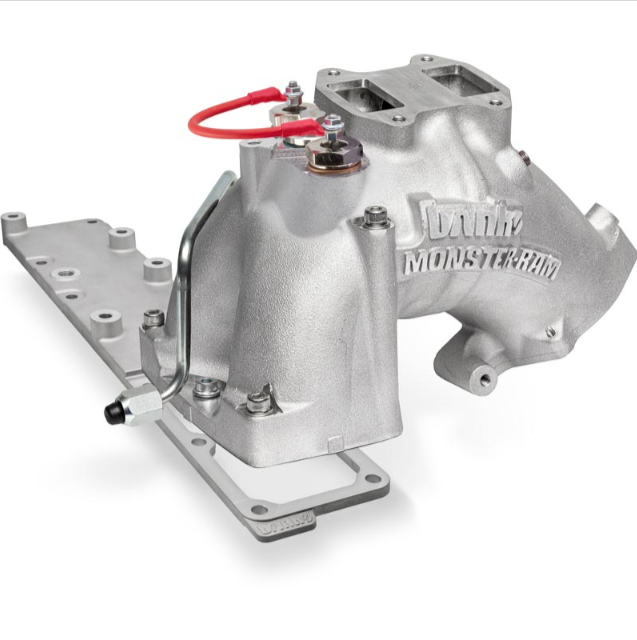

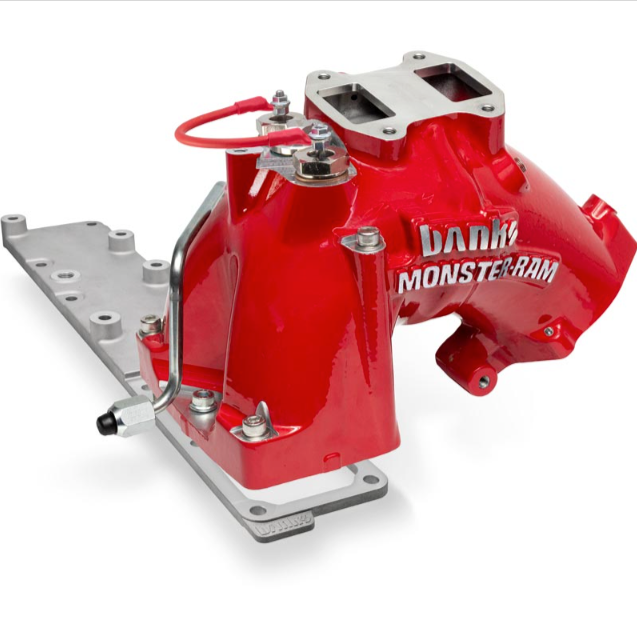

Improve intake airflow and address the factory grid heater design on your Cab & Chassis Ram 3500/4500/5500 6.7L Cummins with the Banks Power Monster-Ram Intake & Heater Grid Upgrade. This system combines the high-flow Monster-Ram intake manifold with a billet intake plate and Banks coil heater to significantly reduce intake restriction while retaining cold-weather starting capability.

With the Banks coil heater and high-flow billet intake plate installed, Banks reports airflow increases from 38.6 lbs/min with the factory configuration to 72.7 lbs/min, an improvement of approximately 88.3%. The larger, less restrictive intake tract improves airflow from the intercooler and is engineered to increase boost without increasing turbine drive pressure, supporting improved throttle response and engine breathing during daily driving, towing, and heavy hauling.

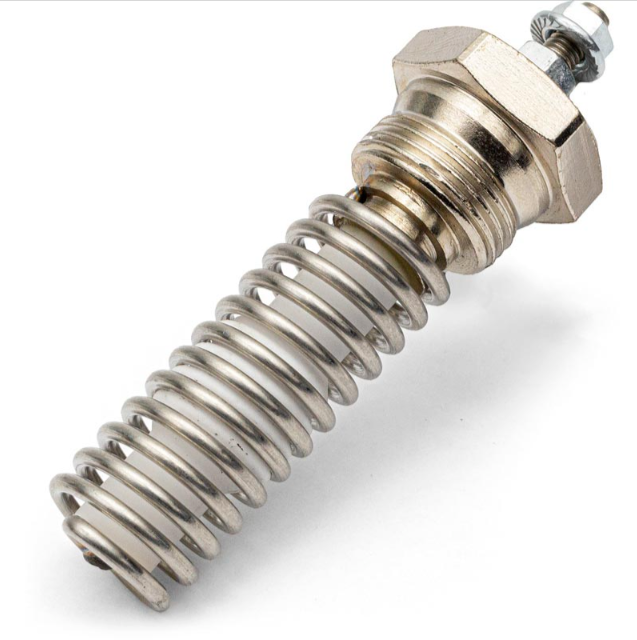

The system replaces the factory grid heater assembly with a CNC-machined high-flow billet intake plate and vertically positioned Banks coil heater. This eliminates the factory grid heater hardware that can loosen after prolonged exposure to heat, vibration, and mileage, potentially allowing components to enter the intake tract and cause severe engine damage. The Banks coil heater maintains factory-like cold-weather starting performance while creating significantly less airflow obstruction.

A proprietary replacement fuel line provides additional clearance for the Monster-Ram's larger airflow path. Four 1/8-inch NPT ports also provide convenient locations for compatible pressure, temperature, or other sensors, including monitoring equipment used with Banks iDash systems.

Features:

• Designed specifically for Cab & Chassis Ram applications
• 3-3/8" intake inlet
• Flows approximately 88.3% more air than the factory configuration
• Tested airflow of 72.7 lbs/min compared to 38.6 lbs/min stock
• Larger and less restrictive than the factory intake manifold
• Improves airflow from the intercooler into the engine
• Designed to increase boost without increasing turbine drive pressure
• Helps improve throttle response and engine breathing
• High-flow Banks coil heater maintains cold-weather starting capability
• High-flow billet intake plate replaces the restrictive factory grid heater
• Eliminates factory grid heater hardware associated with potential intake-side engine damage
• CNC port-matched billet intake plate minimizes airflow restriction
• Designed to optimize intake air pressure and distribution
• Includes proprietary replacement fuel line for improved intake clearance
• Uses factory mounting locations
• (4) 1/8" NPT ports for compatible pressure, temperature, or other sensors
• Available in natural aluminum or red powder-coated finishes

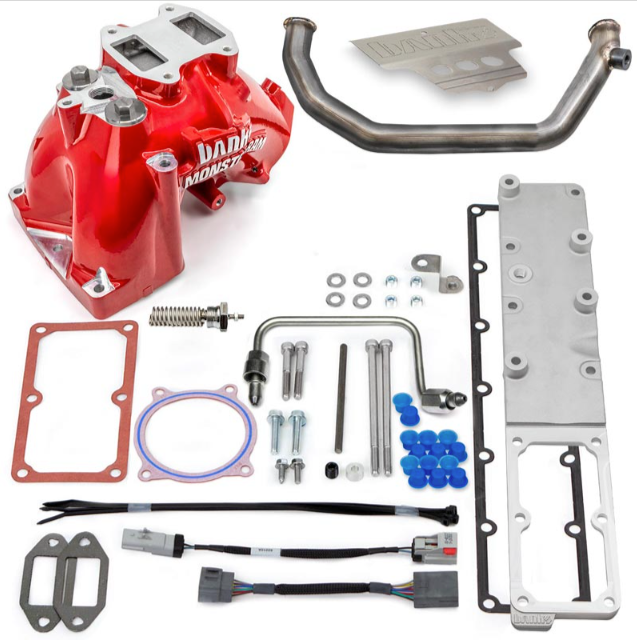

Kit Includes:

• Monster-Ram Intake Manifold
• Banks High-Flow Coil Heater
• High-Flow Billet Intake Plate
• Proprietary Replacement Fuel Line
• Required Installation Hardware

Fitment:

• Ram 3500 Cab & Chassis equipped with the 6.7L Cummins diesel engine
• Ram 4500 Cab & Chassis equipped with the 6.7L Cummins diesel engine
• Ram 5500 Cab & Chassis equipped with the 6.7L Cummins diesel engine

Installation Note:

The factory MAP sensor is mounted to the intake elbow and must be transferred to the Banks Monster-Ram during installation. Replacement of a functioning MAP sensor is not required, but the sensor should be inspected for soot buildup while removed. Clean or replace the sensor as necessary to help maintain accurate pressure and temperature readings.
