BANKS POWER MONSTER-RAM INTAKE & HEATER GRID UPGRADE NATURAL & RED 42805 | 2019-2024 6.7L CUMMINS CAB & CHASSIS

Improve intake airflow and address the factory grid heater design on your Ram 3500/4500/5500 6.7L Cummins with the Banks Power Monster-Ram Intake & Heater Grid Upgrade. The system combines the high-flow Monster-Ram intake manifold with a billet intake plate and Banks coil heater to reduce intake restriction while retaining cold-weather starting capability.

With the Banks coil heater and high-flow billet intake plate installed, Banks reports airflow increases from 38.6 lbs/min with the factory configuration to 72.7 lbs/min, an improvement of approximately 88.3%. The larger, less restrictive intake path improves airflow from the intercooler and is engineered to increase boost without increasing turbine drive pressure, supporting improved throttle response and engine breathing during daily driving, towing, and heavy hauling.

The system also replaces the factory grid heater assembly and its associated intake hardware. The factory heater's electrical connection hardware can loosen after exposure to heat, vibration, and extended service, creating the potential for components to enter the intake tract and cause engine damage. Banks replaces this assembly with a CNC-machined high-flow billet intake plate and vertically positioned coil heater, maintaining cold-start heating while minimizing airflow obstruction.

A proprietary replacement fuel line provides the clearance necessary for the Monster-Ram's larger airflow path without requiring additional tuning. Four 1/8-inch NPT ports provide convenient locations for compatible pressure, temperature, and other sensors, including monitoring configurations utilizing Banks iDash equipment.

Features:

• 3-3/8" intake inlet
• Flows approximately 88.3% more air than the factory configuration
• Tested airflow of 72.7 lbs/min compared to 38.6 lbs/min stock
• Larger and less restrictive than the factory intake manifold
• Improves airflow from the intercooler into the engine
• Designed to increase boost without increasing turbine drive pressure
• Helps improve throttle response and engine breathing
• High-flow Banks coil heater maintains cold-weather starting capability
• High-flow billet intake plate replaces the factory grid heater assembly
• Eliminates factory grid heater hardware associated with potential intake-side engine damage
• CNC port-matched billet intake plate minimizes airflow restriction
• Designed to optimize intake air pressure and distribution
• Includes proprietary replacement fuel line for improved intake clearance
• No additional tuning required for installation
• Uses factory mounting locations
• (4) 1/8" NPT ports for compatible pressure, temperature, or other sensors

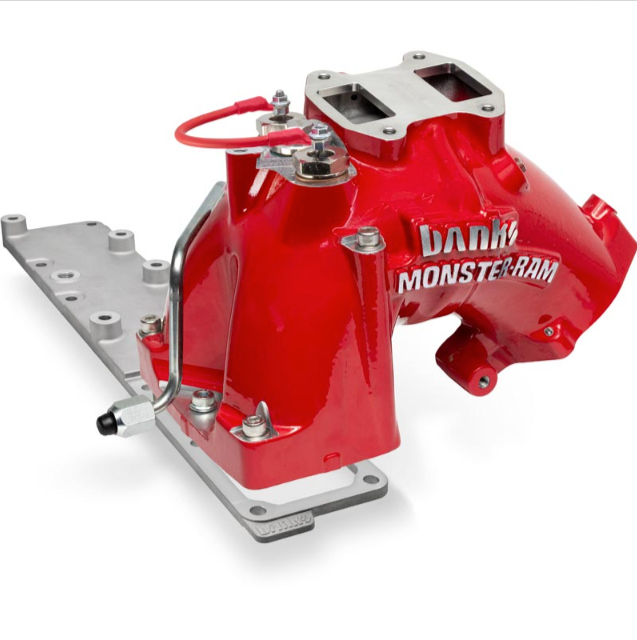

• Available in natural aluminum or red powder-coated finishes

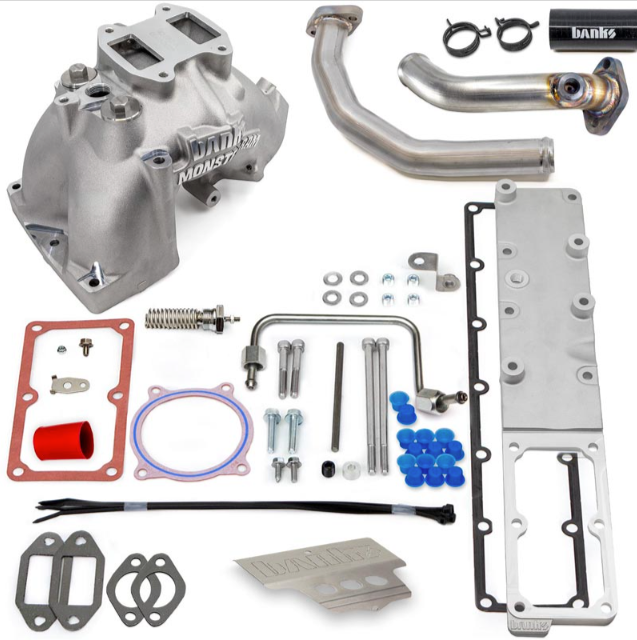

Kit Includes:

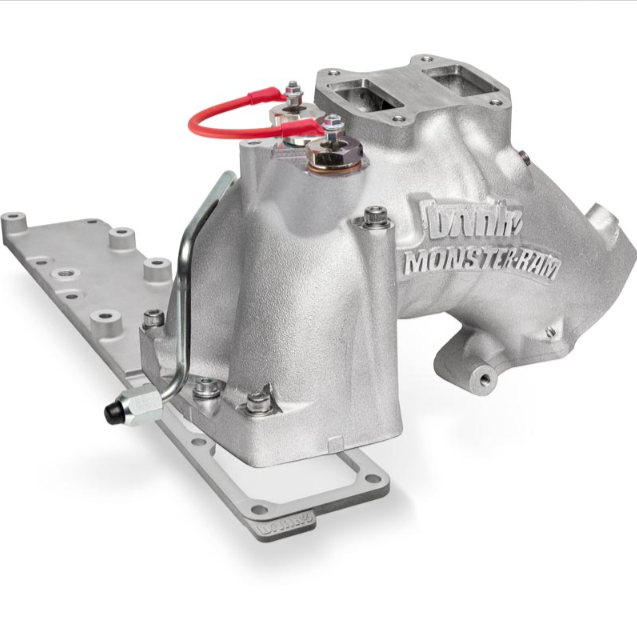

• Monster-Ram Intake Manifold

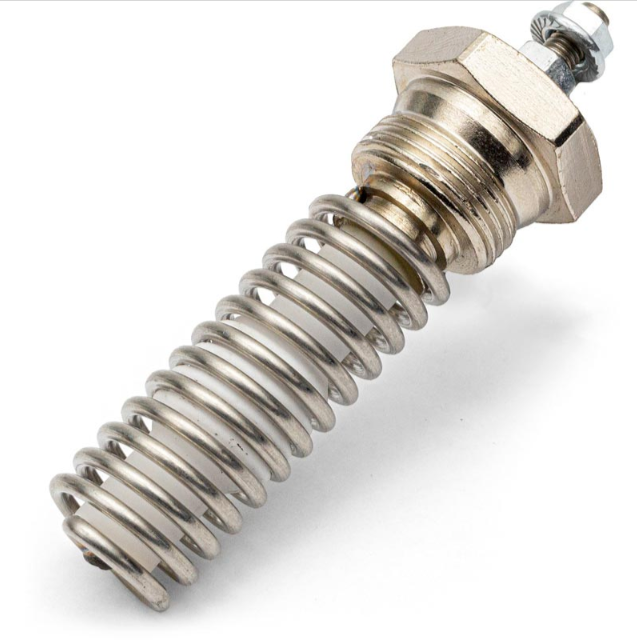

• Banks High-Flow Coil Heater
• High-Flow Billet Intake Plate
• Proprietary Replacement Fuel Line
• Required Installation Hardware

Fitment:

• Ram 3500 equipped with the 6.7L Cummins diesel engine
• Ram 4500 equipped with the 6.7L Cummins diesel engine
• Ram 5500 equipped with the 6.7L Cummins diesel engine

Installation Note:

The factory MAP sensor is mounted to the intake elbow and must be transferred to the Banks Monster-Ram during installation. Replacement of a functioning MAP sensor is not required, but the sensor should be inspected for soot buildup while removed. Clean or replace the sensor as necessary to help maintain accurate pressure and temperature readings.
