BANKS POWER AAM 11.5"14-BOLT REAR RAM-AIR DIFFERENTIAL COVER 19249/19259/19269 | 2001-2019 Duramax 6.6L & 2003- 2018 Cummins 5.9L/6.7L

Banks started from scratch while sparing no expense in the creation of this differential cover. The team sought to answer the age-old question: "Do rear differential covers provide any real benefit, or are they just bling?" After extensive research, Gale and the Banks Engineering Team identified two major issues with aftermarket diff covers: poor airflow and flawed fluid dynamics. These issues are fully addressed in the Banks Ram-Air Differential Cover.

Testing showed that flat-back covers with larger fluid capacities suffer from poor fluid dynamics. The Banks Ram-Air design improves fluid flow to increase fuel economy and extend lubrication life. Cooling performance is 118% better than flat-back competitors at sustained 60mph and 4X better during on-road towing tests.

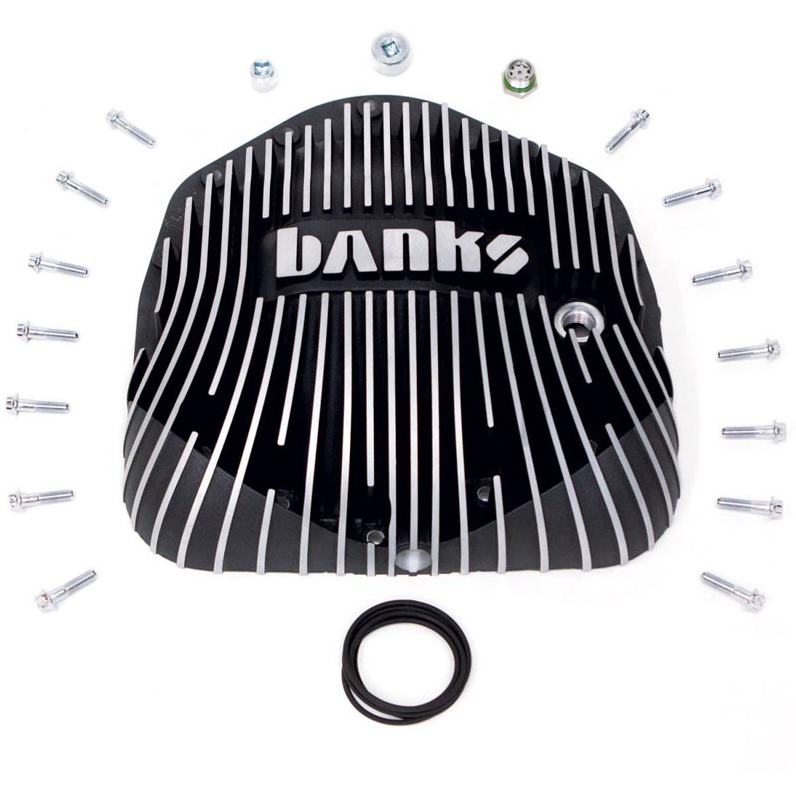

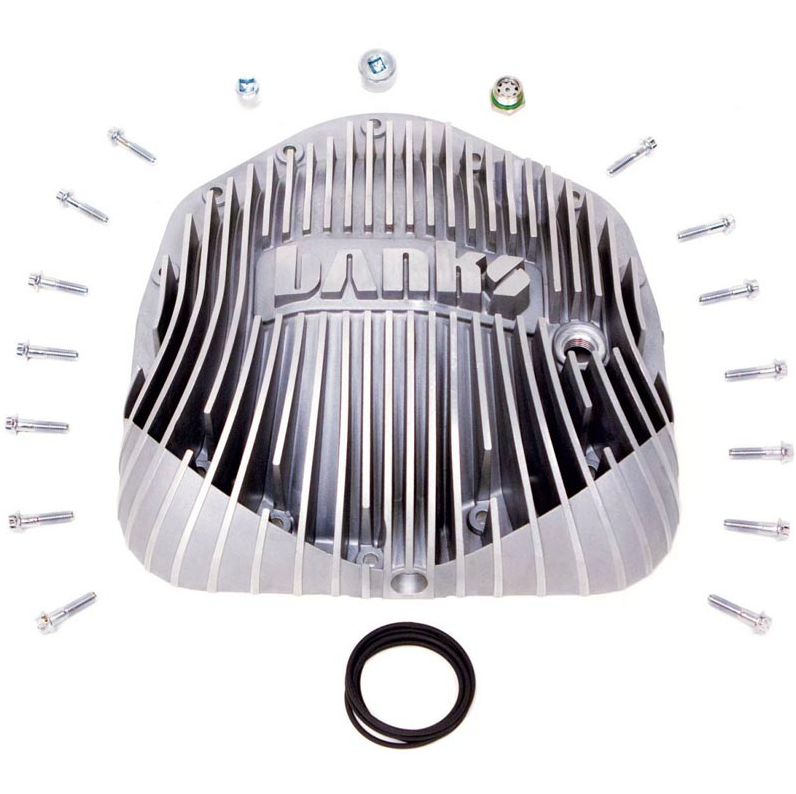

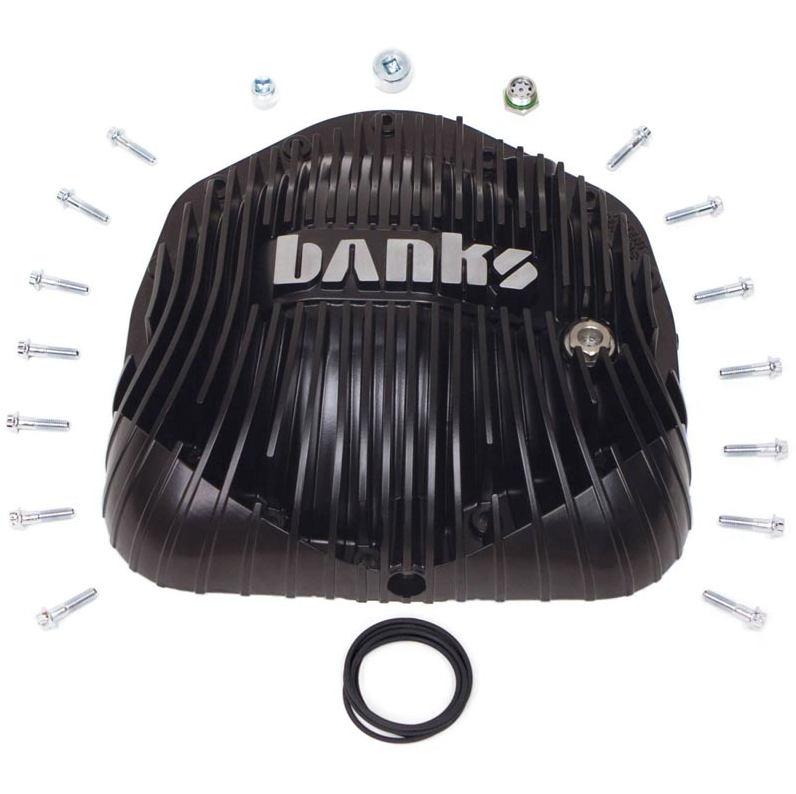

Construction & Design

• A380 aluminum diecast with CNC-machined surfaces
• Internal and external cooling fins
• Patented Ram-Air scoops for optimized airflow around cooling fins
• Dry-mount high-pressure silicone O-ring seal (no messy RTV)
• Includes chrome-plated mounting hardware
• Magnetic drain plug and 20° angled magnetic fill plug for easy filling
• 1/2" stainless steel sight glass for fluid level monitoring

Features

• Ram-Air System
• Magnetic Fill Plug
• Lubricant Raceway
• 1/8” NPT Sensor Port
• Directional Fluid Guides

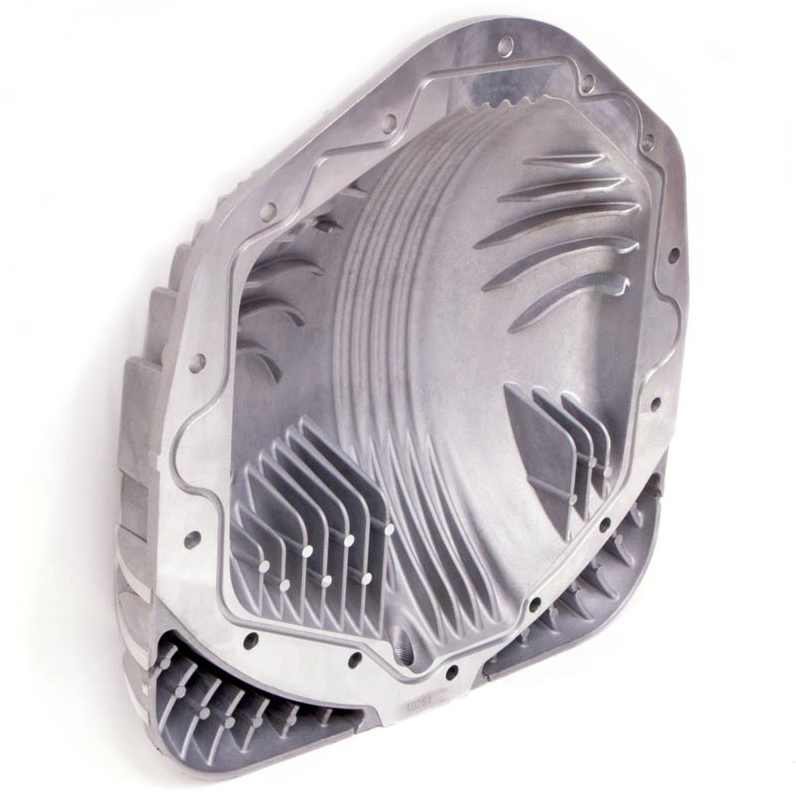

• Internal Heat Absorption Fins
• Class-Leading Heat Rejection
• Precision Fit Machined Surface
• Sight-Glass with Contrast Screen
• Die-Cast A380 Aluminum Construction
• Includes 304 Stainless-Steel Hardware
• Radiused Ports for Smoother Fluid Flow
• Does Not Sacrifice Ground Clearance
• Break-Away Design Protects Cover if Snagged
• Clears Spare Tire Heat Shield, Panhard Bars, and Other Components

Technical Specifications

• Weight: 11.7 lbs
• External Heat Radiation Fin Count: 24
• Internal Heat Absorption Fin Count: 26
• Dimensions: 14.2 in x 13.3 in x 3.8 in
• External Heat Radiation Surface Area: 533.782 in²
• Internal Heat Absorption Surface Area: 119.882 in²
• Total External Surface Area: 808.81 in²
• Total Internal Surface Area: 215.78 in²
• Fasteners: 14 x Stainless Steel M8-1.25 Flange Hex Bolts
• Internal Volume: ~4.0 Qts (Check OEM Owners Manual)

Fluid Dynamics

• Low fluid aeration for longer fluid life
• Cover mates flush with differential housing for smooth flow
• Ring gear raceway controls fluid flow to pinion and bearings
• Axle tube lubricant guides direct lube without overfilling

Oil Service

• Magnetic drain plug
• Magnetic fill port plug
• 20° angled fill port for easy access
• No need to remove cover to change fluid
• Fill level ~4.0 Qts (varies by model year)
• 1/2-inch sight glass with contrast screen and high-quality seal

Application Notes

• Does not fit Ram trucks with airbag suspension alone
• Sway bar spacers (#19249-2) required on 2014-2024 Ram 2500/3500 trucks with OEM sway bar
