2024+ GM 1500/2500/3500HD 52MM Dual Gauge Mount

**** You are buying a pod only – gauges and trim panel are sold separately ****

Tools Needed for Install:
4mm Hex Key & 2.5mm Ball-End Hex Key (refer to install sheet for additional pillar removal tools)

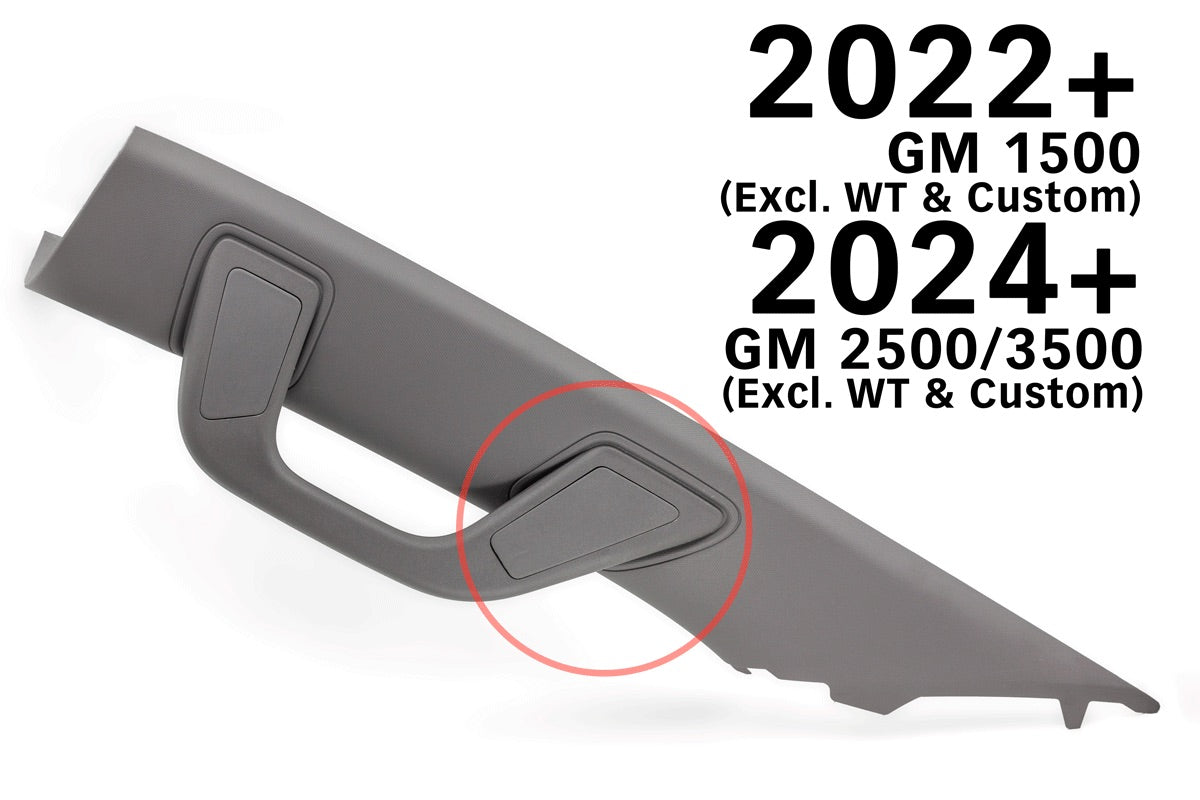

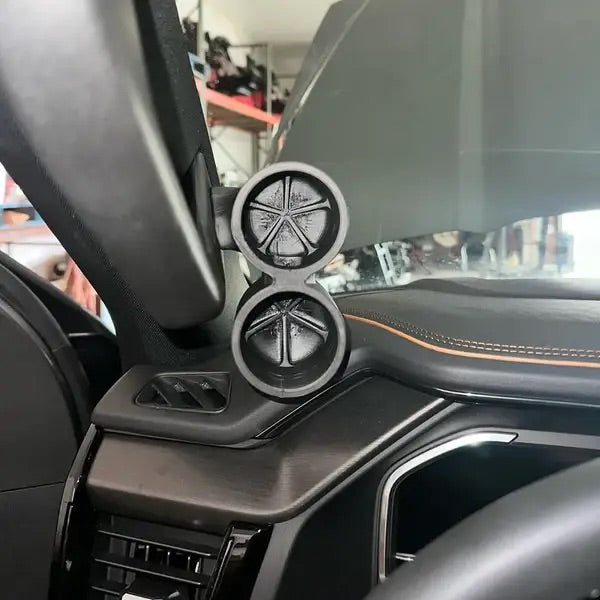

This 52mm gauge pod is designed for left-hand-drive GMC/Chevy Sierra and Silverado trucks. It bolts directly onto the factory grab-handle trim and holds (2) 2 1/16" (52mm) gauges. Drilling is required for wiring installation (see install sheet steps 5–6).

Note: The OEM handle is not included — this pod mounts to your existing factory handle.

Vehicle Fitment:
1500 Models: 2023+
2500 Models: 2024+
3500 Models: 2024+

Each vent pod is 3D-printed using durable ABS composite plastic to prevent cracking, fading, and warping, while providing a clean custom fit and finish. All pods come in a satin black finish and can be sanded or painted for a personalized touch. Mounting hardware is included.

Each Order Includes:

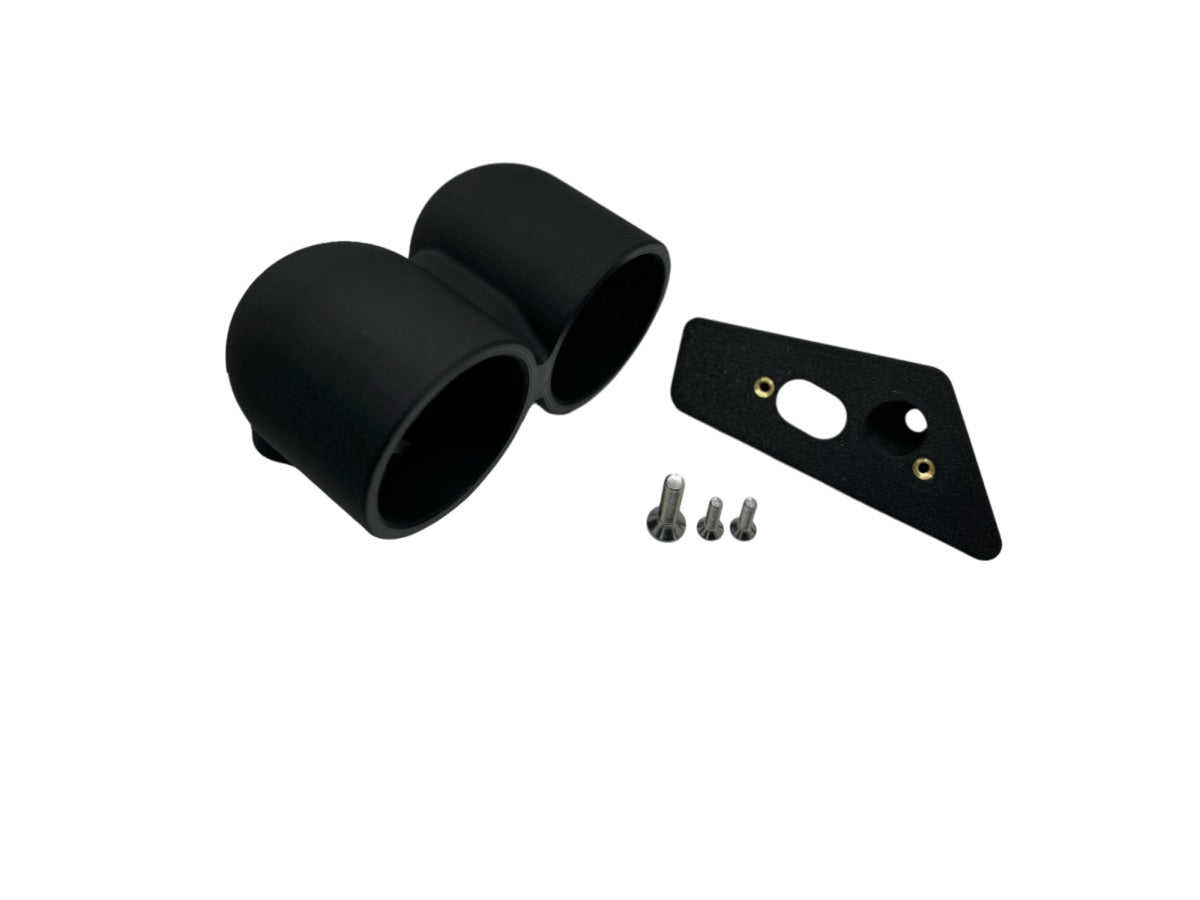

• (1) Double pod for (2) 2 1/16" (52mm) gauges
• (1) Adhesive pad to secure gauges
• Mounting hardware
• Digital install sheet (includes link for additional required tools)

Gauge Fitment:
Standard 52mm openings compatible with most gauges. Depth verified to fit ProSport, GlowShift, AEM Standard & X-Series, and Revel gauges. Pod depth is 2 inches (50mm).
Note: Autometer mechanical gauges are too deep for this pod — please measure gauge depth before ordering.
