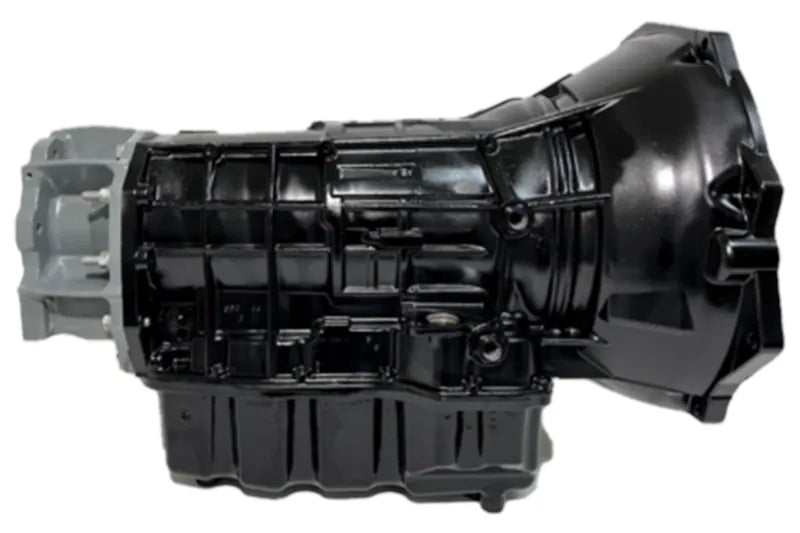

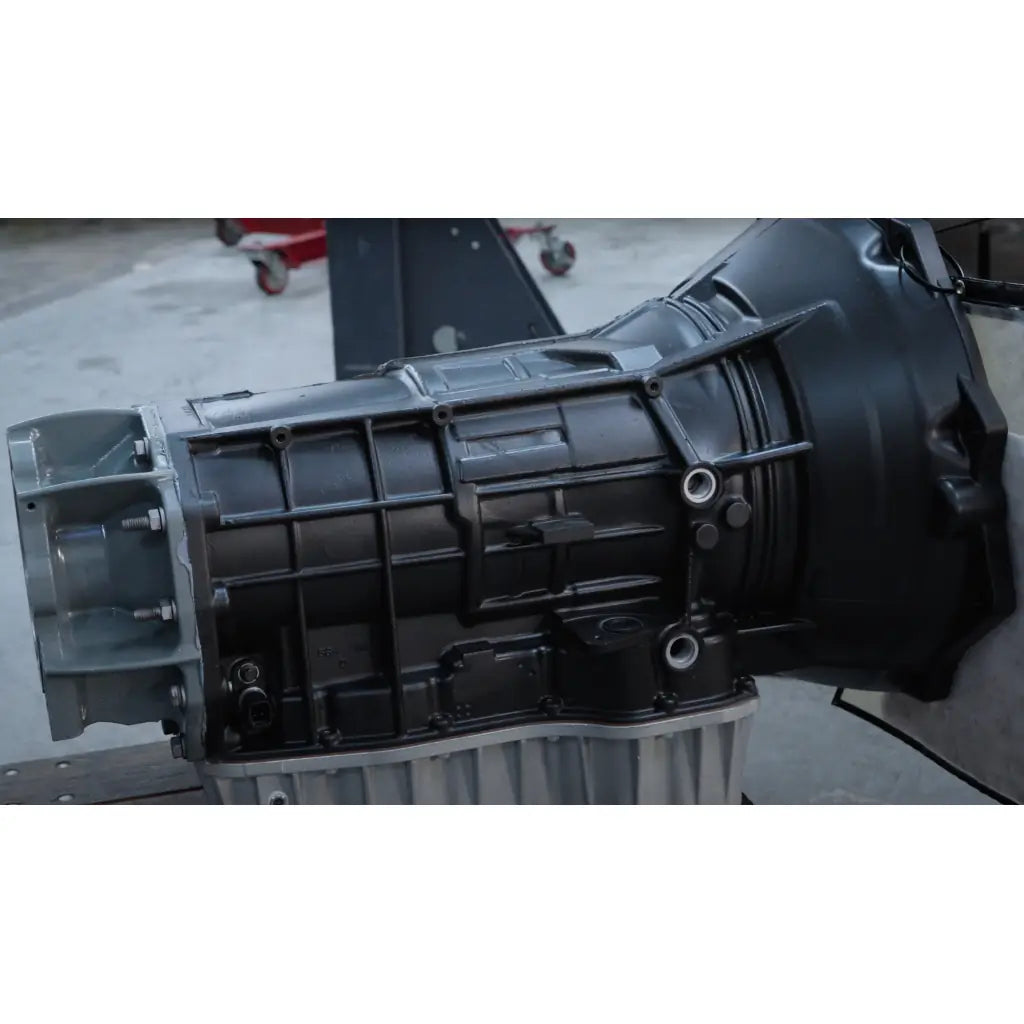

2019-2024 Ram 2500 & 3500 Tier One 600HP Stage 1 68RFE Transmission

Tier One's 68RFE Stage 1 Transmission is built for mild tuning, heavy towing, and aggressive on- or off-road driving. Designed to handle up to 600 horsepower from tuning, bolt-on upgrades, and mild single-turbo setups, this complete drop-in transmission fits 2019-2024 Ram 6.7L Cummins 2500 and 3500 trucks.

Features:

• Built 68RFE Transmission for mild to moderate power increases
• Handles up to 600 horsepower

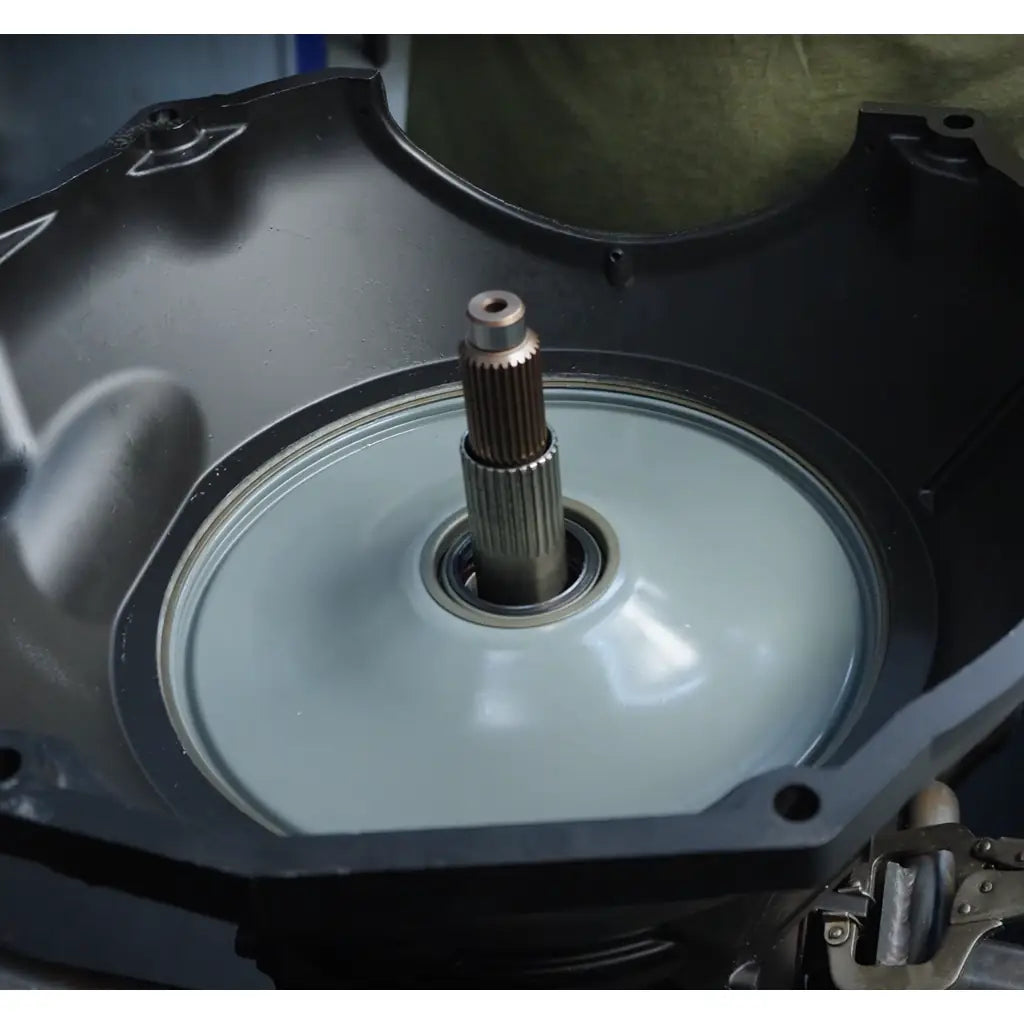

• Billet Twin-Disc Torque Converter

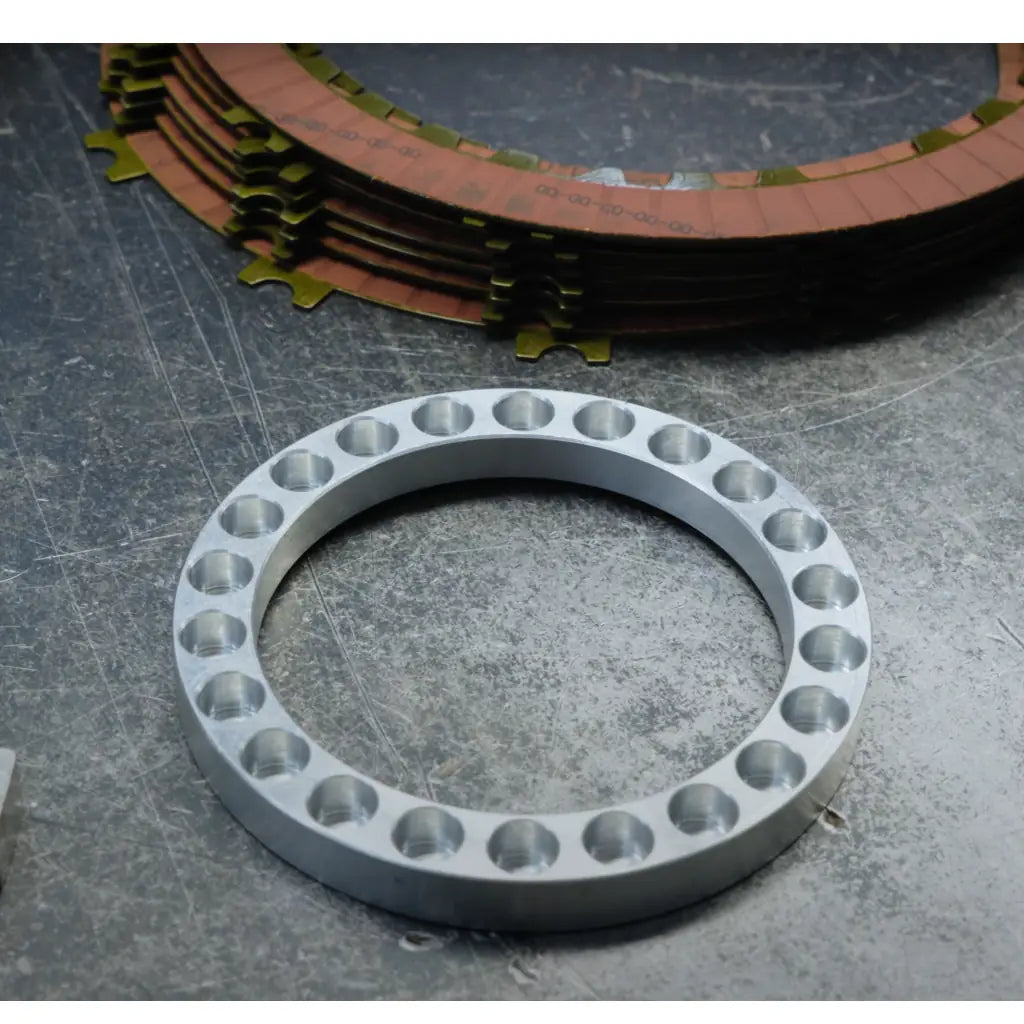

• Billet 4C Spring Retainer

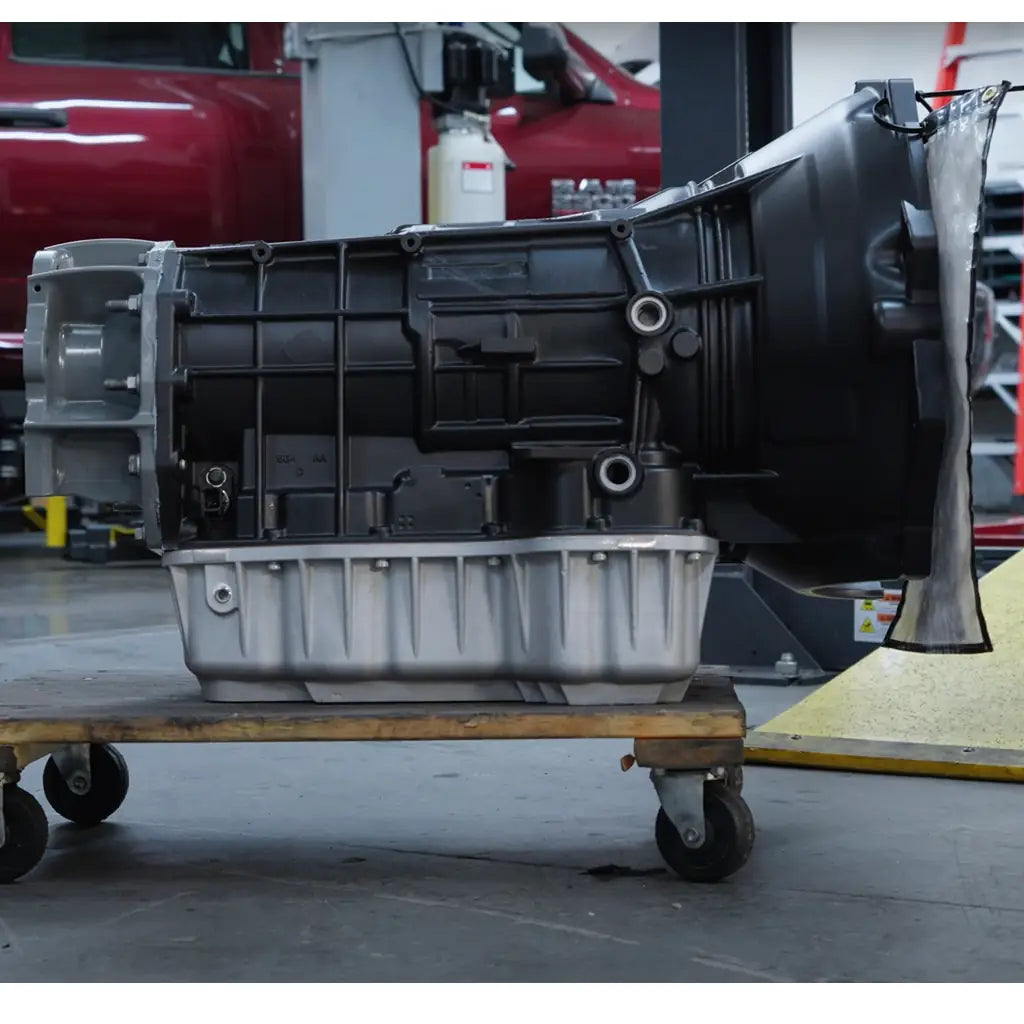

• Deep Transmission Pan for improved cooling
• Performance Rebuild Kit with additional overdrive and second gear clutches

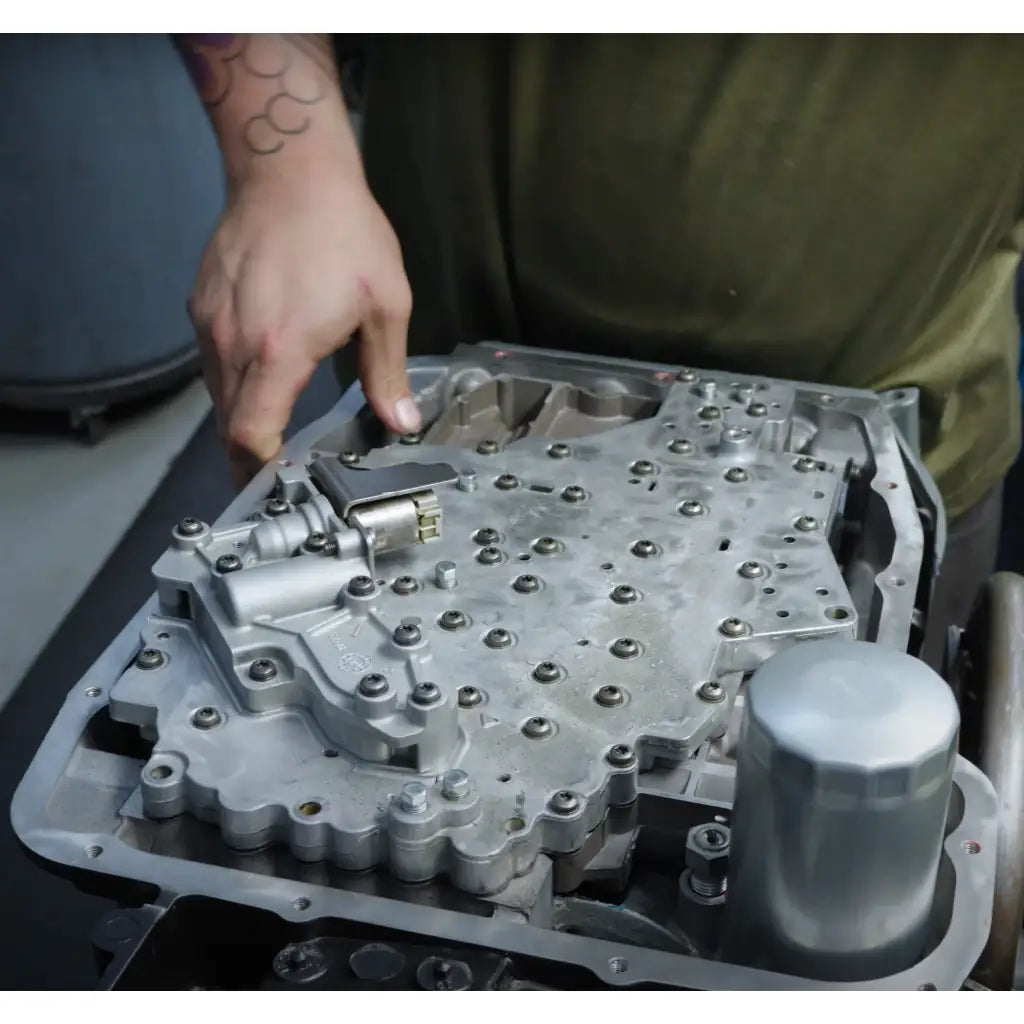

• High-Pressure Valve Body
• Fixes common 68RFE issues
• Perfect for towing, hauling, off-road, street builds, and mild drag racing
• Black finish for a clean under-truck look
• Valve bodies leak-checked prior to installation
• 2-Year, unlimited mileage warranty

Build Details:

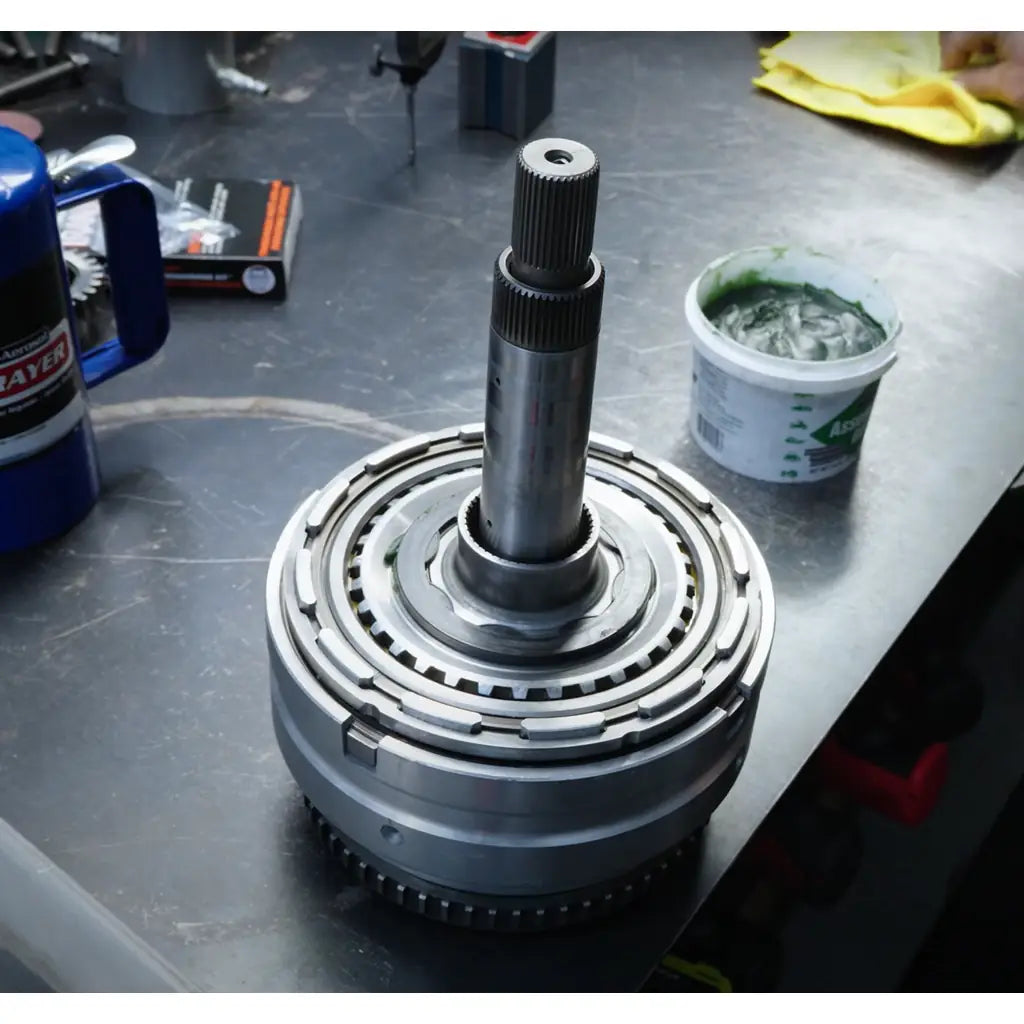

Each Stage 1 transmission begins with a thoroughly cleaned and inspected OEM 68RFE core. The included billet twin-disc torque converter provides more surface area and power-holding capability. The deep transmission pan increases fluid capacity for better cooling. Tier One includes a high-pressure valve body, billet 4C spring retainer, and performance rebuild kit with new clutch packs and OEM solenoids/line sensors. All gaskets and seals are new, and each unit is air-checked for leaks before shipping.

Testing:

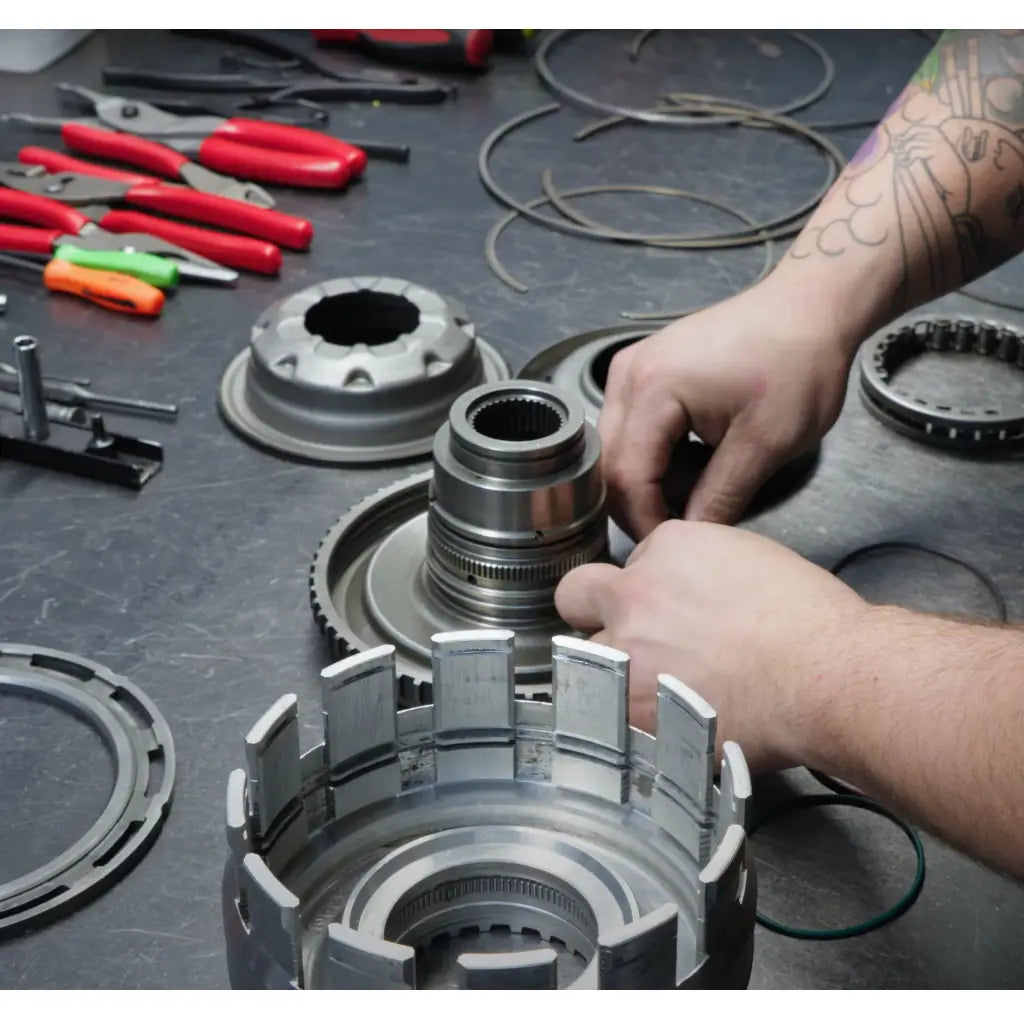

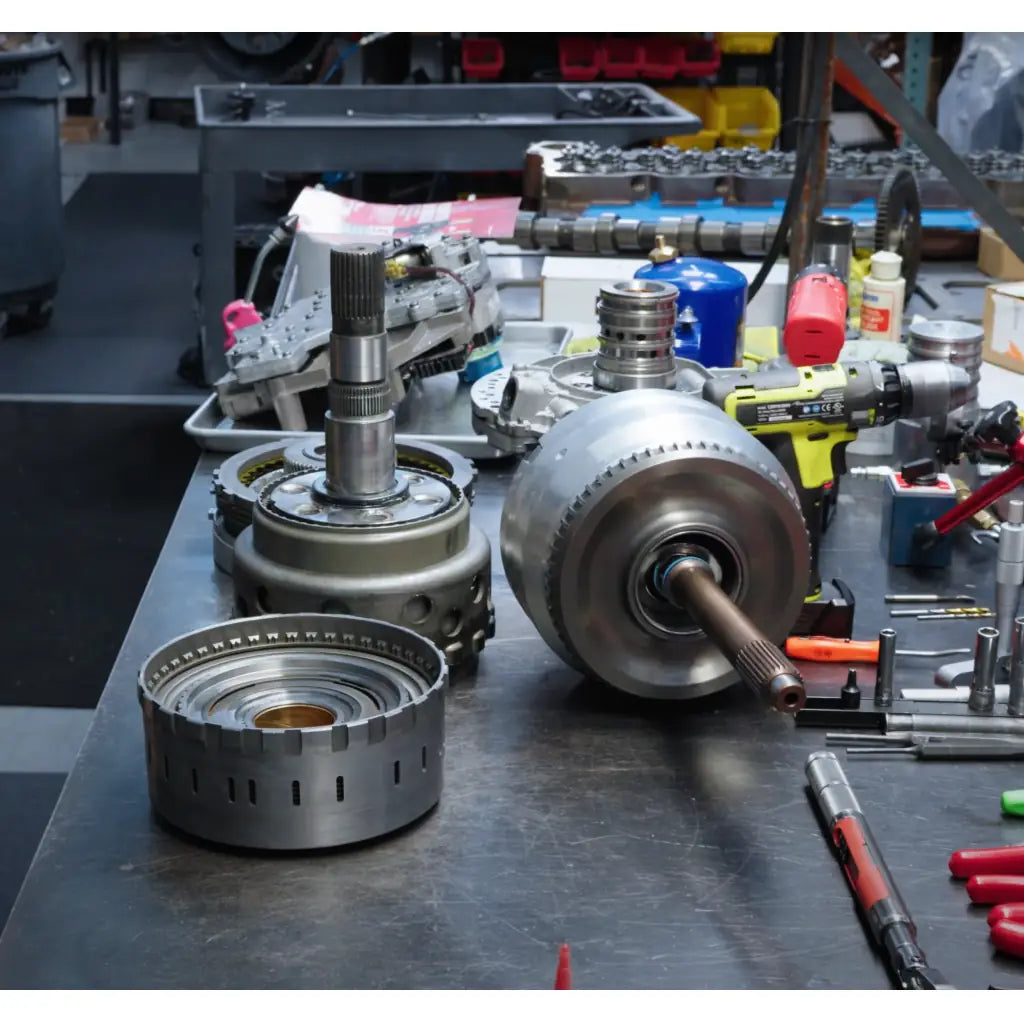

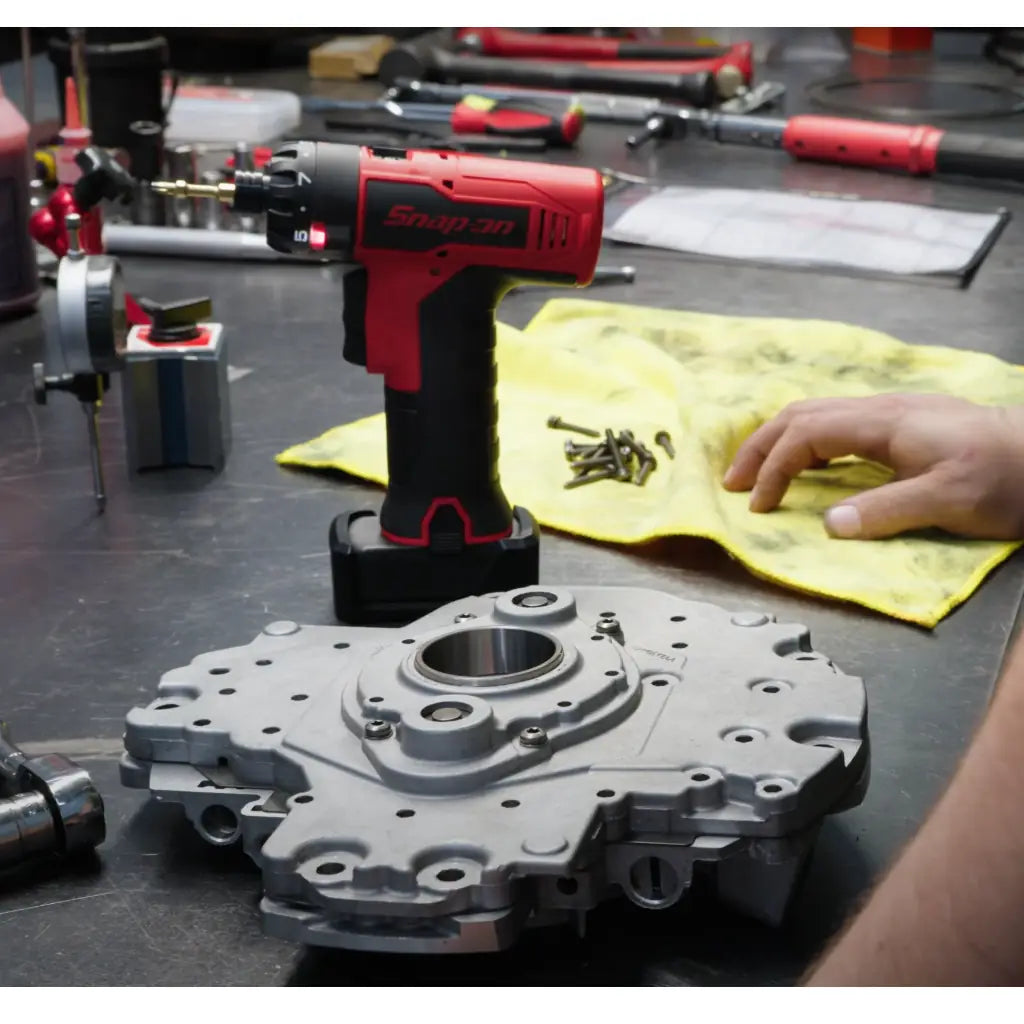

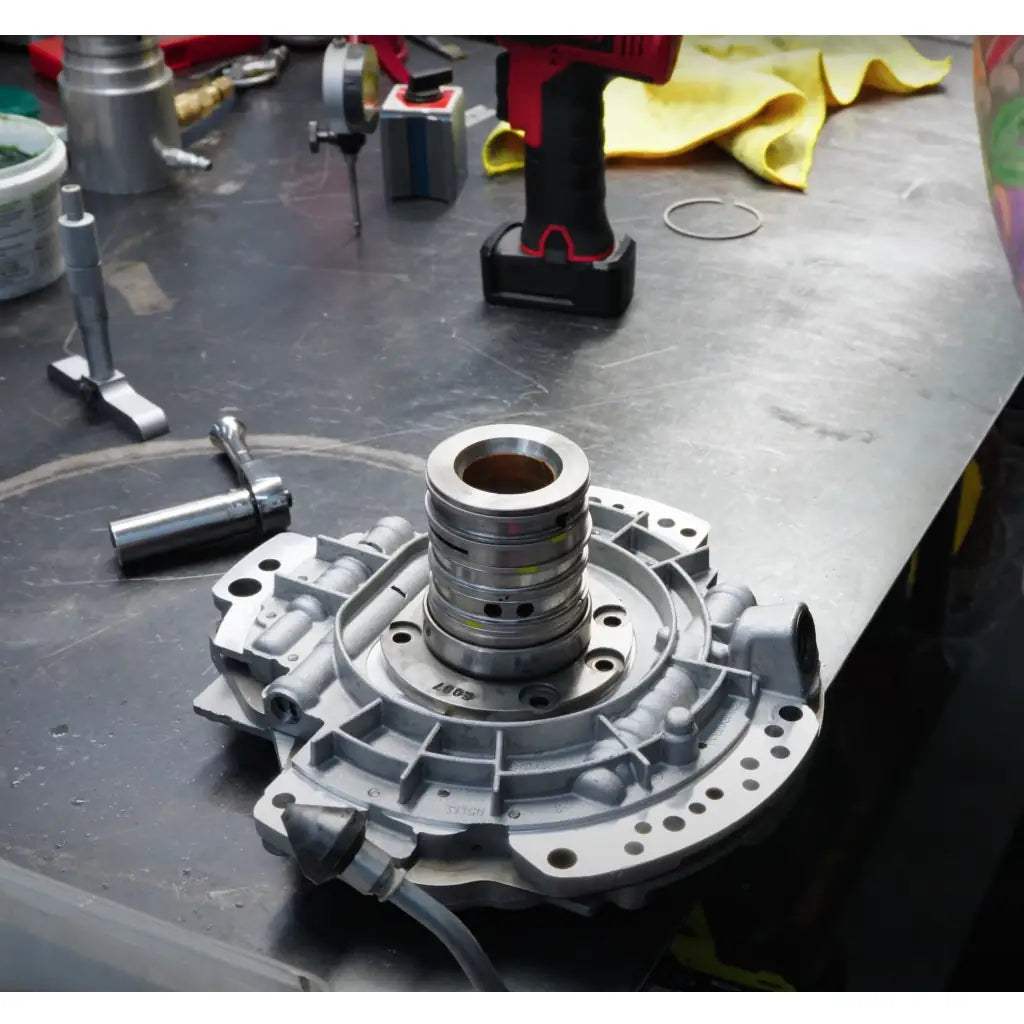

All Stage 1 transmissions are fully inspected and tested. Planetary gear trains are checked for damage, bearings and washers are spec’d, pumps are vacuum-tested, and valve body solenoids are inspected and flat-sanded for improved function. TIG-welded planetary pinions and new Borg Warner clutches are included to ensure reliability under load.

Specifications:

• Vehicle fitment: 2019-2024 Ram 2500 or 3500 6.7L Cummins
• Transmission Type: Chrysler 68RFE
• Power Rating: Up to 600hp
• Torque Converter: Billet Twin-Disc
• Flex Plate: OEM
• Input Shaft: OEM
• Transmission Pan: Deep pan with increased capacity
• Valve Body: High-Pressure
• Intermediate Shaft: OEM

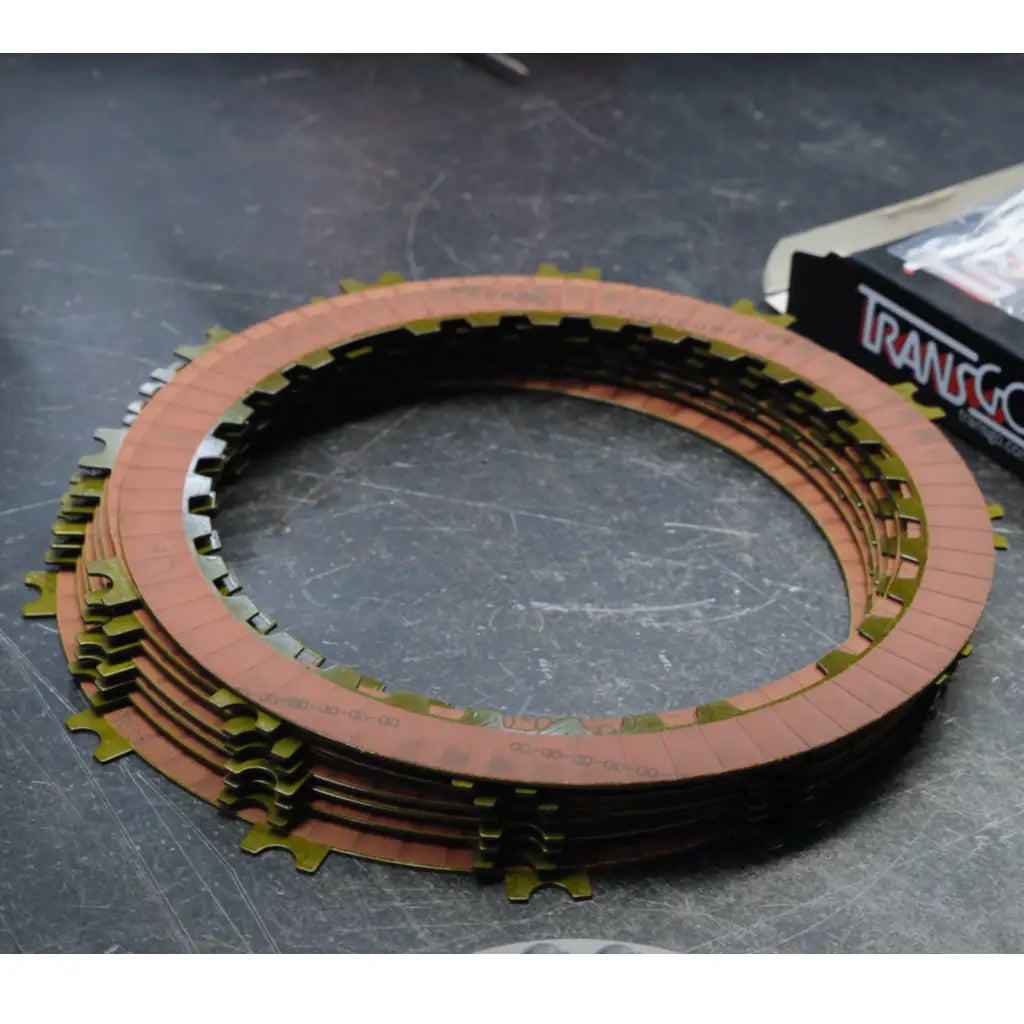

• Clutches: Borg Warner; Additional overdrive clutch packs
• Output Shaft: OEM
• Geartrain: OEM
• Spring Retainers: Billet 4C/OEM
• Pistons: OEM
• Sprag: OEM
• Clutch Hub: OEM

Notes:

• This transmission only fits 2019-2024 Ram 2500 and 3500 with 68RFE transmissions.
• 2-Year, unlimited mile warranty included. See Terms & Conditions.
• Optional Upgrades: Billet flex plate, billet input shaft, billet valve body channel plate, bypass upgrade, auxiliary cooler kit.
• Recommended Gearing: 35" tires – 4.10 gears or higher; 37" tires – 4.30 gears or higher; +38" tires – 4.56 gears or higher.
• Transmission Break-in: 300-mile break-in and 100-mile relearn required.
• Core Charge: $2,500, refundable upon inspection; partial or full waivers available if stock transmission is sent ahead of time.
• Freight Shipping: Inspect carefully before signing Bill of Lading. Call 602-399-5484 if damaged.
